Why Your Cutting Components Wear Out Faster Than Expected?
For many workshops, one of the most common frustrations in daily production is that nozzles, lenses, and protective mirrors seem to wear out far too quickly.
You may notice:
Cutting quality suddenly drops
More burrs appear
Piercing becomes unstable
The machine requires frequent calibration
You’re replacing consumables more often than expected
Fast wear is not only costly — it also disrupts production efficiency.
To solve this problem, you first need to understand why it happens.
Common Causes of Rapid Wear in Fiber Laser Consumables
1. High Thermal Load During Cutting
Fiber laser cutting generates extremely high temperatures.
If the parameters are not optimized, heat builds up in the nozzle, lens, and protective window.
Excessive heat can deform the nozzle opening or burn contaminants onto the protective lens, shortening its lifespan.
2. Incorrect Air or Gas Pressure
When the gas pressure is too high or too low, it causes:
Backflow of molten metal
Unstable cutting kerf
Splashes hitting the nozzle and lens
This directly accelerates the wear of consumables.
3. Using Low-Quality Consumables
Nozzles or lenses made from low-grade materials cannot withstand high-power cutting for long periods.
They typically suffer from:
Deformation
Oxidation
Coating failure
This results in both poor cutting performance and a shorter service life.
4. Poor Maintenance or Dirty Work Environment
Metal dust, oil, and smoke can stick to lenses and mirrors during cutting.
Without regular cleaning, these contaminants:
Block laser transmission
Create hot spots
Damage coatings
Reduce laser energy efficiency
Even a small particle on the lens can cause rapid deterioration.
How to Extend the Life of Your Cutting Components?
1. Choose High-Quality Nozzles and Protective Lenses
Consumables made from heat-resistant copper alloys and coated optical glass last significantly longer.
High-quality components provide:
Better heat dissipation
Stable gas flow
Smoother cutting edges
Higher tolerance under long-term production
At BCAMCNC, all fiber laser machines are equipped with:
Double-layer protective lenses
Premium copper alloy nozzles
High-temperature resistant ceramic holders
These features reduce replacement frequency and lower maintenance cost for workshops.
2. Optimize Laser Power, Speed, and Focus Position
Incorrect parameters are one of the biggest reasons for premature wear.
You can minimize wear by:
Lowering laser power when unnecessary
Improving cutting speed to reduce long heat exposure
Fine-tuning the focus position for different materials
Adjusting gas pressure to stabilize melt removal
A well-optimized cutting process produces less thermal stress and fewer splashes — which means your consumables last longer.
3. Keep the Optical Path Clean
A daily or weekly cleaning routine can significantly extend consumable life.
Recommended maintenance steps:
Wipe protective lenses with specialized optical wipes
Check the nozzle opening for deformation
Clean smoke residue inside the cutting head
Ensure the gas filter is not clogged
BCAMCNC machines come with dust-proof sealing and optional lens contamination monitoring, helping operators maintain optical clarity easily.
4. Use Proper Cutting Gas and Ensure Clean Air Supply
Impurities or moisture in the air source can deposit on lenses and nozzles.
To avoid that:
Use clean nitrogen or oxygen
Install dryers and filters
Monitor air compressor quality
Avoid cutting oily or dirty materials
Stable gas quality = longer component life.
When to Replace Consumables (Signs to Look For)
Replace the nozzle or lens immediately if you notice:
Cutting sparks become unstable
Burrs increase suddenly
Kerf becomes wider
Inconsistent piercing
Edge color changes
Visible marks, scratches, or burns on the lens
Timely replacement prevents further damage to the cutting head.
BCAMCNC Solutions for Longer Consumable Life
To help workshops reduce downtime and maintenance cost, BCAMCNC offers:
High-precision Raytools/Hypcut laser heads
Double-layer protective optical lenses
Wear-resistant professional nozzles
Stable gas control modules
Remote parameter support from BCAMCNC engineers
A stable machine combined with proper parameters ensures significantly slower wear rates.
Conclusion & CTA
If you are using a BCAMCNC fiber laser cutting machine, our engineering team can assist you with:
Parameter calibration
Material cutting recommendations
Consumable selection
Maintenance routines
Keep your laser cutter performing at its best, reduce consumable costs, and improve production efficiency.
Want to explore more cost-effective models? Check out our F Series Fiber Laser Cutting Machines.

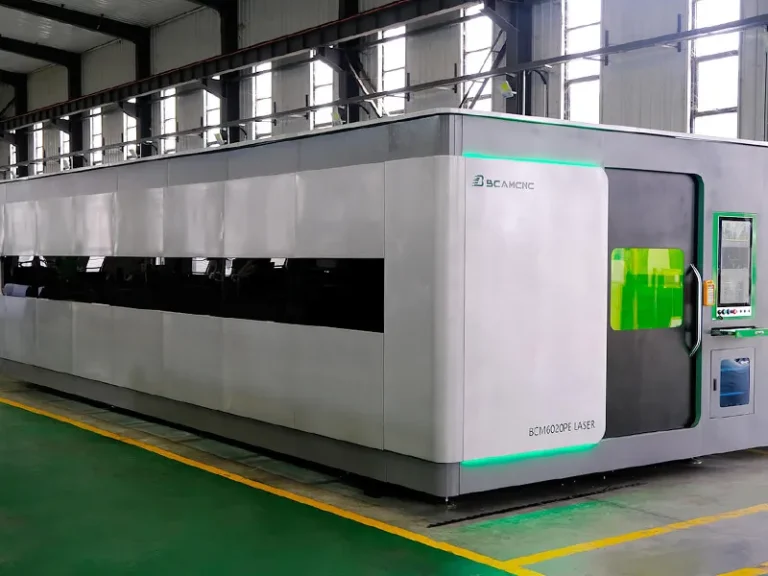

If you need a high-end enclosed model for enhanced safety and stability, refer to our PE Series Full Cover Fiber Laser Cutting Machines.
