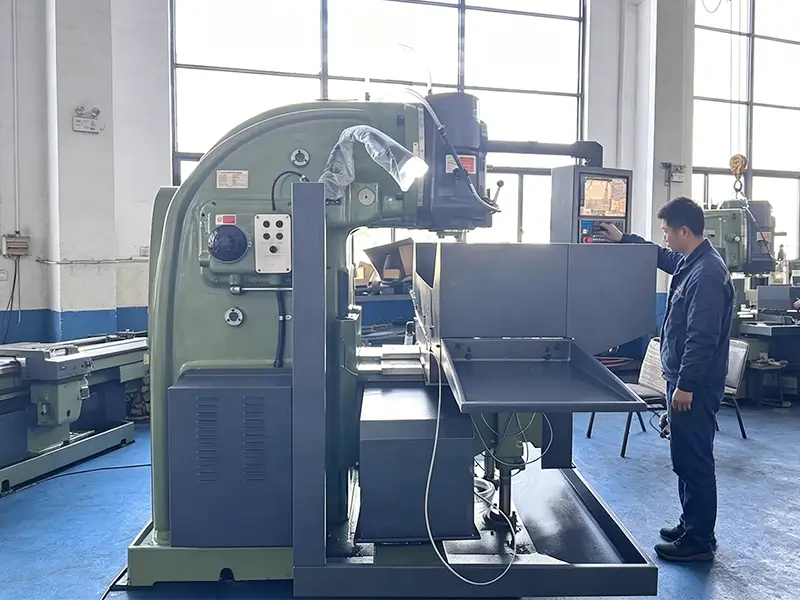

XK5040 CNC Vertical Knee Milling Machine features an NT50 spindle, 17kW motor, and 400 × 1700 mm T-slot table for machining steel parts, molds, fixtures, and industrial components. Its rigid cast iron construction and CNC control system make it a practical solution for heavy-duty milling applications.
Brand
- BCAMCNC
Model
- BCXK5040
Table Size
- 400 × 1700 mm
Supplity – 360 Units in Stock Available for Sale Every Month
Standard – Meeting CE Standards in Terms of Quality & Safety
Warranty – One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

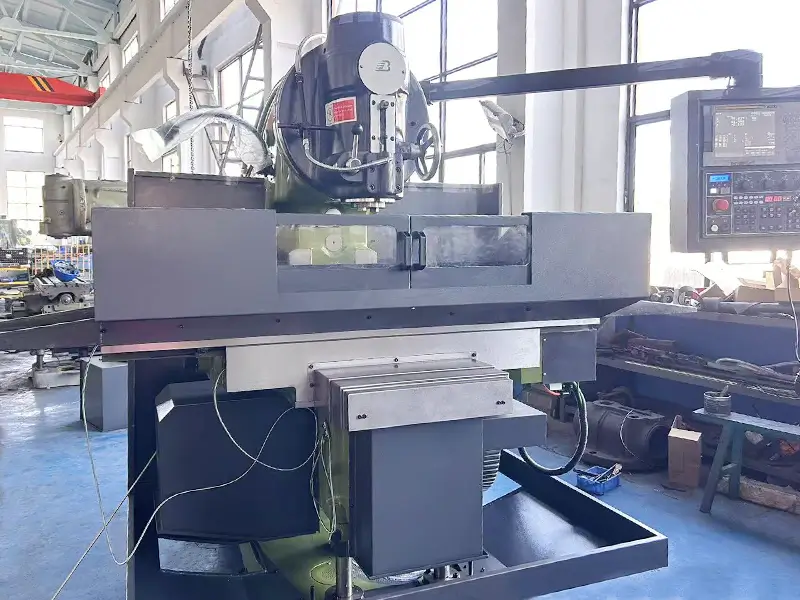

The XK5040 CNC Vertical Knee Milling Machine is designed for machining steel components, tooling plates, molds, fixtures, and general mechanical parts that require stable cutting performance and a large working area.
Built with a cast iron machine structure, NT50 spindle interface, and a 400 × 1700 mm worktable, this machine combines the flexibility of a traditional knee-type milling machine with the efficiency of CNC control. It is suitable for workshops and manufacturers that need reliable milling capability for medium to large workpieces without the complexity of a machining center.
Key Features and Machine Configuration

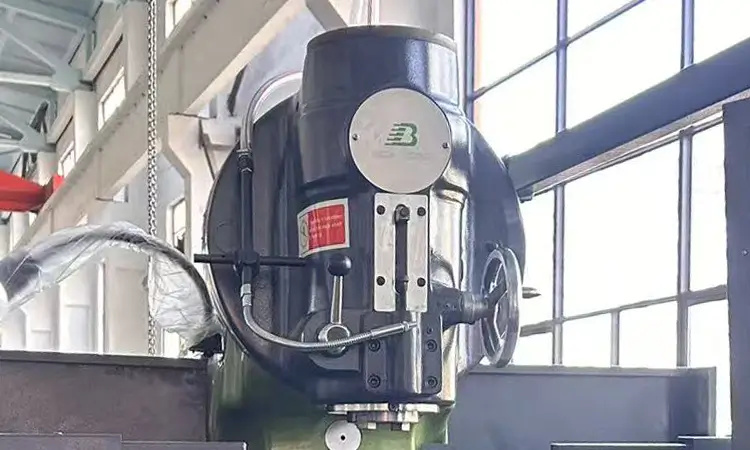

Heavy-Duty NT50 Spindle for High-Torque Cutting
The spindle system is one of the most important elements of any CNC Vertical Knee Milling Machine. The XK5040 is equipped with an NT50 spindle taper, a configuration commonly selected for applications that require higher rigidity and cutting force than lighter spindle systems.
Benefits of the NT50 spindle
Strong tool holding capability
Improved rigidity during heavy cutting
Suitable for steel, cast iron, and tooling materials
Stable performance during rough machining operations
The spindle speed range of 35–1500 rpm allows the machine to handle both low-speed heavy milling and general machining tasks.

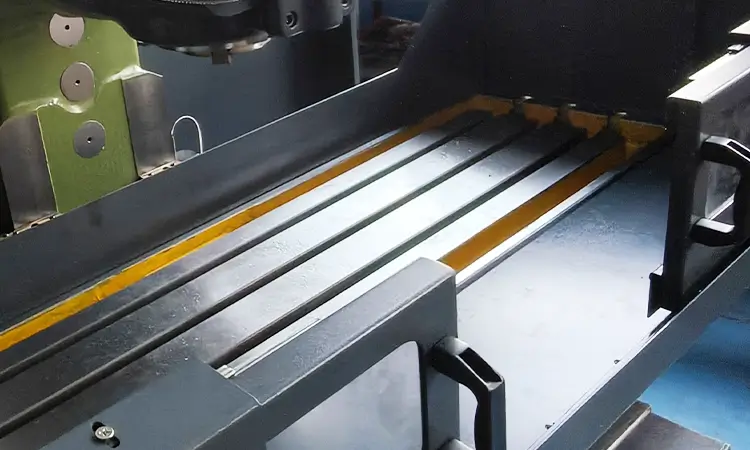

Large Worktable for Long Workpieces
The machine features a 400 × 1700 mm T-slot worktable designed to accommodate large plates, fixture assemblies, and elongated components.
Typical workpiece types
Mold bases
Steel plates
Machine frames
Fixture components
Mechanical equipment parts
The table travel provides:
X-axis travel: 900 mm
Y-axis travel: 315 mm
Z-axis travel: 385 mm
This travel range makes the CNC Vertical Knee Milling Machine suitable for a wide variety of metalworking applications where workpiece size exceeds the capacity of smaller milling machines.

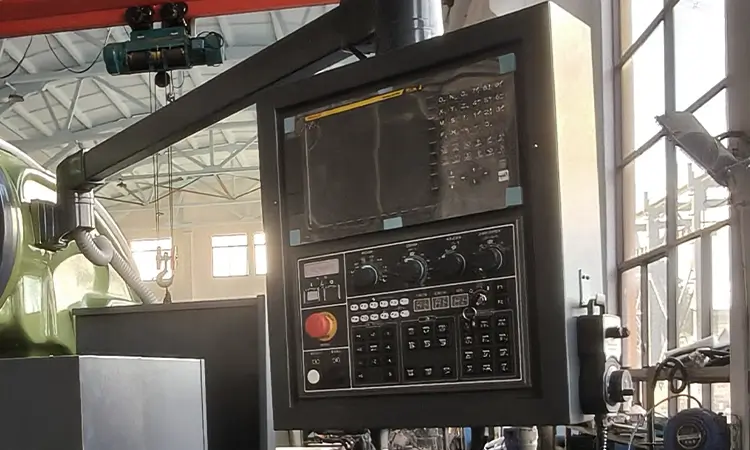

CNC Control for Repeatable Production
Compared with conventional manual milling machines, CNC control improves consistency and reduces operator dependency.
Advantages in production environments
Program-based machining
Repeatable part production
Reduced setup variation
Improved efficiency for batch manufacturing
The machine configuration supports common milling operations including face milling, slot milling, drilling, boring, and contour machining.

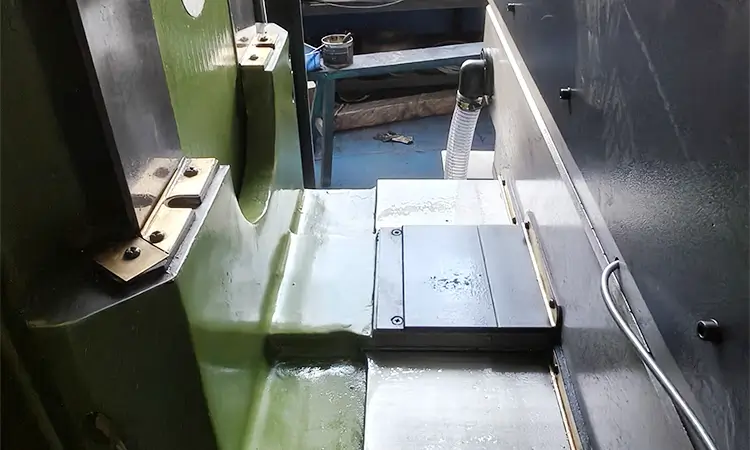

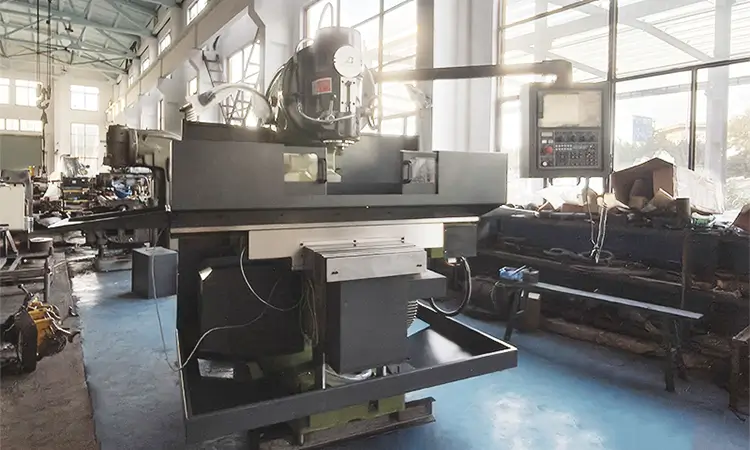

Cast Iron Machine Structure
Machine rigidity plays a significant role in machining stability.
The XK5040 utilizes a cast iron frame and column structure designed to support the loads generated during milling operations.
Structural advantages
Better vibration absorption
Increased machining stability
Improved cutting performance
Reduced deformation under load
For manufacturers processing carbon steel, alloy steel, and cast iron components, structural rigidity contributes directly to machining consistency.

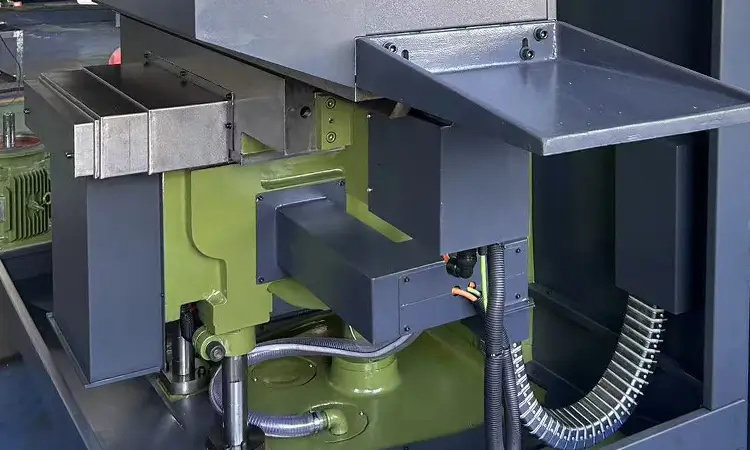

Centralized Lubrication and Protected Drive Components
The drive system incorporates protected mechanical components and lubrication arrangements intended to support long-term machine operation.
Design considerations
Reduced wear on moving components
Improved maintenance efficiency
Protection from chips and coolant contamination
Enhanced reliability in workshop environments
These features are particularly important for facilities operating machines over extended production schedules.
Applications of the CNC Vertical Knee Milling Machine
A CNC Vertical Knee Milling Machine is commonly selected when manufacturers need the flexibility of a knee-type machine combined with CNC positioning capability.
Typical industries
Mold and Die Manufacturing
Suitable for machining mold plates, mold bases, and tooling components.
Machinery Manufacturing
Used for shafts, mounting plates, brackets, housings, and custom machine parts.
Tooling and Fixture Production
Capable of producing jigs, fixtures, and workholding systems used in industrial production.
Maintenance and Repair Workshops
An effective solution for repair machining, replacement components, and low-volume production work.
Why Choose a CNC Vertical Knee Milling Machine Instead of a Machining Center?
For many workshops, a CNC Vertical Knee Milling Machine provides a practical balance between capability, investment cost, and operational simplicity.
Suitable when:
Automatic tool changing is not required
Workpieces are large but production volume is moderate
Heavy milling capability is prioritized
Operators prefer accessible machine setup and adjustment
This machine type remains widely used in tooling shops, repair facilities, educational workshops, and general manufacturing environments where versatility is important.
Technical Overview
Item
Specification
Machine Model
XK5040 CNC Vertical Knee Milling Machine
Machine Type
CNC Vertical Knee Milling Machine
Worktable Size
400 × 1700 mm
T-Slots
3 Slots
T-Slot Width
18 mm
Table Load Capacity
1000 kg
X-Axis Travel
900 mm
Y-Axis Travel
315 mm
Z-Axis Travel
385 mm
Spindle Taper
NT50 (7:24)
Spindle Diameter
130 mm
Spindle Speed Range
35–1500 rpm
Main Motor Power
17 kW
Rapid Feed Rate (X/Y)
0–2500 mm/min
Rapid Feed Rate (Z)
0–1800 mm/min
Machine Weight
Approx. 4300 kg
Machine Dimensions (L × W × H)
2630 × 2750 × 2450 mm
Power Supply
208–240V / 3 Phase / 60Hz
CNC Control System
Fagor CNC System*

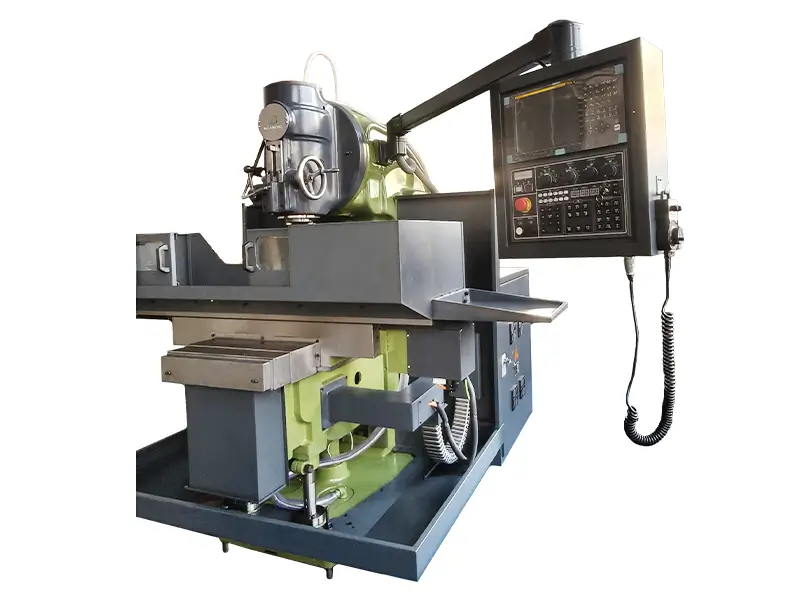

Sample Display
Conclusion
The XK5040 CNC Vertical Knee Milling Machine is designed for manufacturers seeking a rigid and practical milling solution for steel fabrication, mold making, fixture production, and general mechanical machining.
With its NT50 spindle, large worktable, cast iron construction, and CNC control system, the machine offers a combination of heavy-duty cutting capability and operational flexibility suitable for a wide range of industrial applications.
