Woodworking Spindle Shaper Machine for Edge Profiling and Decorative Moulding
Precision Wood Edge Profiling Solution for Furniture, Cabinet, and Door Processing
Last Updated: 2019-05-14

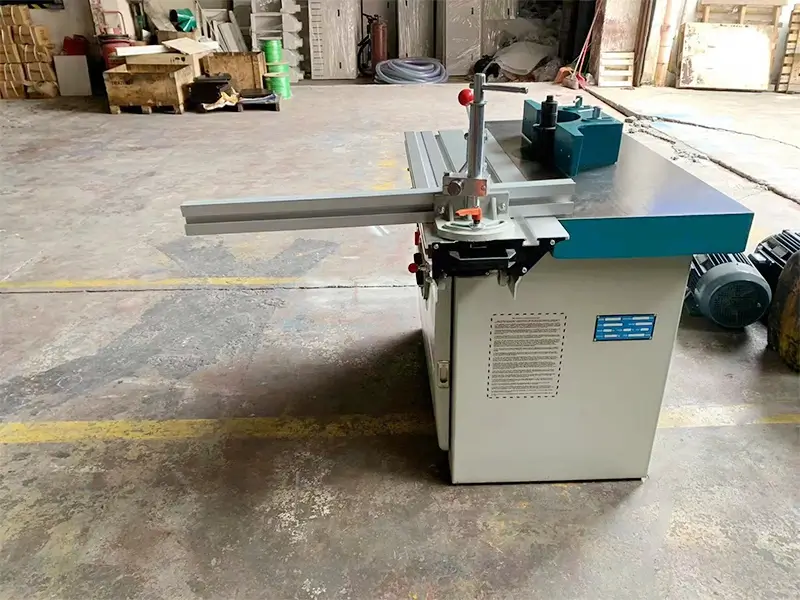

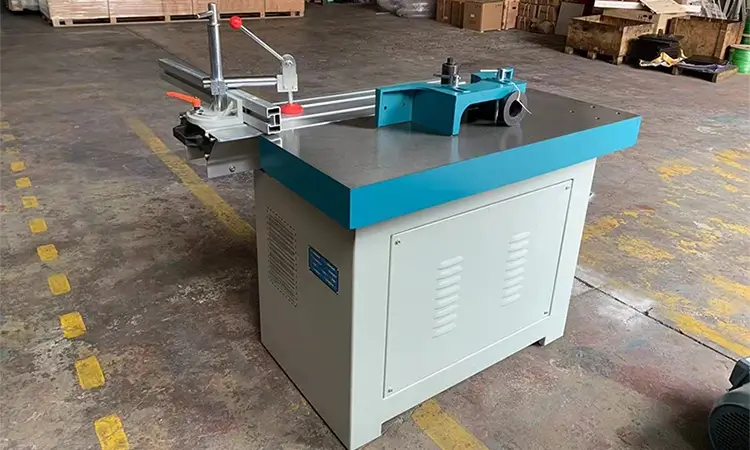

The BCM5116T woodworking spindle shaper machine is designed for edge profiling, groove cutting, decorative moulding, and cabinet door processing. Equipped with a high-speed spindle, precision sliding table, and stable guide rail system, the machine delivers smooth cutting performance and reliable woodworking accuracy for furniture manufacturing, wooden door production, and decorative woodworking applications.
Brand
- BCAMCNC
Model
- BCM-5116T
Table Size
- 1200*750
Supplity – 360 Units in Stock Available for Sale Every Month
Standard – Meeting CE Standards in Terms of Quality & Safety
Warranty – One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
The BCM5116T woodworking spindle shaper machine is designed for professional wood edge profiling, groove cutting, decorative moulding, and cabinet door processing applications. Equipped with a high-speed spindle system, precision sliding table structure, and stable guide rail design, the machine delivers smooth cutting performance and reliable machining accuracy for modern woodworking production environments.
This machine is widely used in furniture manufacturing workshops, cabinet factories, wooden door processing plants, decorative moulding production lines, and custom woodworking businesses. It is suitable for processing solid wood, MDF, plywood, laminated boards, hardwood materials, softwood materials, and composite wood panels.
The equipment supports multiple woodworking operations including edge shaping, tongue and groove machining, slot cutting, chamfering, round edge processing, decorative profile production, and furniture component shaping. The compact machine structure and convenient adjustment system improve operational efficiency and simplify daily woodworking production.
Stable feeding and accurate cutter positioning usually determine whether woodworking production runs smoothly or becomes unexpectedly educational. Machines have strong opinions about operator mistakes.
Core Machine Advantages
Precision Guide Rail Structure
The machine adopts a precision guide rail system to ensure smooth and stable sliding movement during woodworking operations.
Features
Smooth feeding performance
Stable machining accuracy
Wear-resistant structure
Anti-rust surface treatment
Long service life
The stable guide rail structure helps improve machining consistency during continuous industrial production.
Large Handwheel Adjustment System
The spindle height can be adjusted through the large-size handwheel system, allowing operators to quickly control cutting depth and spindle position.
Benefits
Fast spindle adjustment
Convenient machine operation
Improved working efficiency
Accurate cutting depth control
Reduced setup time during cutter replacement
The simplified adjustment structure improves production efficiency for different woodworking applications.

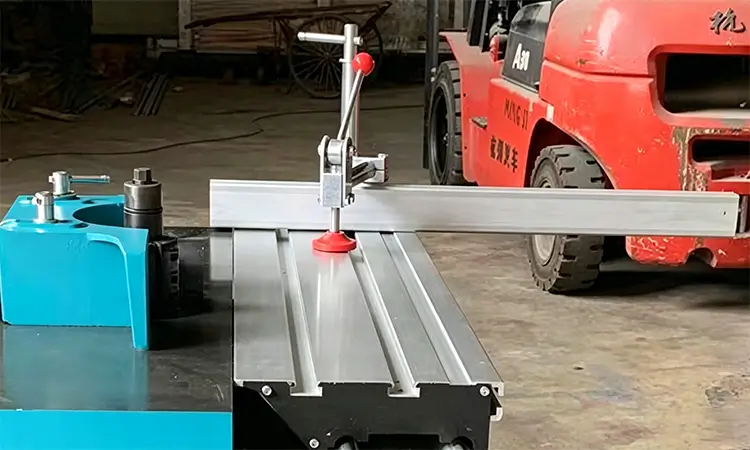

Sliding Table and Hold-Down Device
The machine is equipped with an aluminum sliding table, pressure device, and stable feeding mechanism for improved material handling performance.
Advantages
Safer woodworking operation
Better short material processing
Stable feeding support
Improved machining consistency
Accurate material positioning
This structure is especially suitable for processing narrow wooden workpieces and short materials where stable feeding is essential for machining precision.
High-Speed Spindle Performance
The spindle speed reaches 8000 RPM, providing smooth cutting surfaces and efficient woodworking performance.
Suitable Applications
Decorative moulding
Furniture edge shaping
Groove cutting
Cabinet panel processing
Wooden door profiling
Round edge machining
The high-speed spindle system improves cutting quality and processing efficiency for various woodworking materials.
Dust Collection and Safety Design
The spindle area includes a protective cover and dust extraction outlet to improve working conditions and operational safety.
Benefits
Cleaner working environment
Reduced wood dust accumulation
Better processing visibility
Improved operator safety
More efficient dust collection performance
Technical Specifications
Item
Specification
Model
BCM5116T
Motor Power
5.5 KW
Voltage
380V / 3 Phase / 50HZ
Spindle Speed
8000 r/min

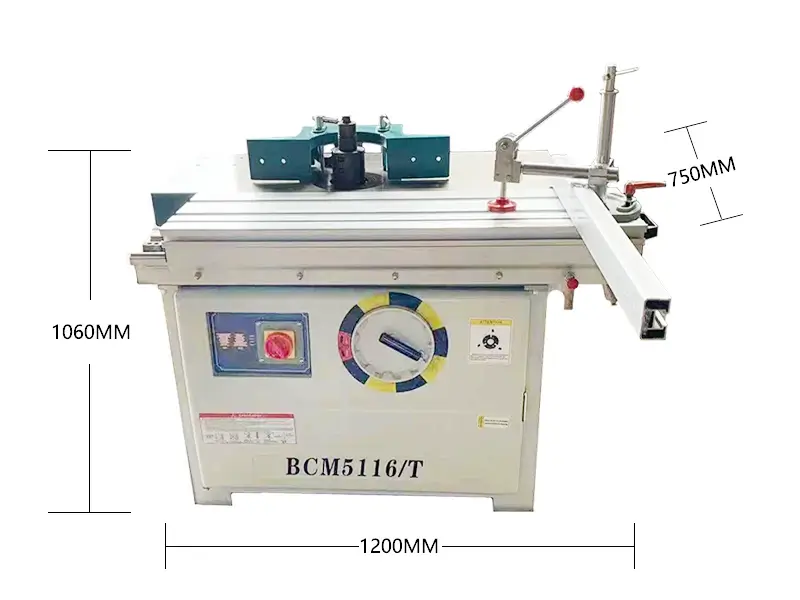

Machine Size
1200 × 750 × 1060 mm
Weight
350 KG
Machine Structure Details

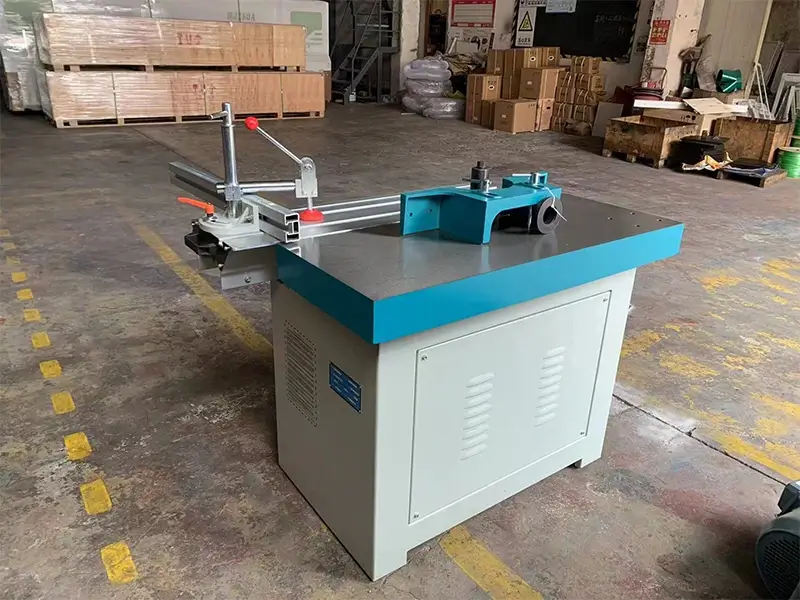

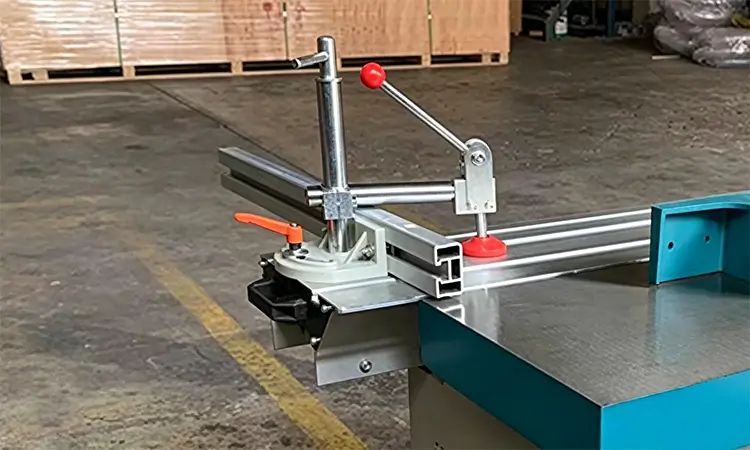

Precision Sliding Table Structure
The aluminum sliding table system improves feeding accuracy and operational stability during edge profiling and groove cutting operations.
Suitable For
Straight edge processing
Decorative moulding
Long wood panel machining
Cabinet edge shaping
Furniture panel processing
The sliding table design ensures smooth material movement and accurate feeding direction during woodworking production.
Adjustable Fence System
The long adjustable fence provides accurate material guidance for stable woodworking operations.
Features
Accurate positioning
Stable feeding direction
Better edge consistency
Improved batch production efficiency
Reliable profile alignment
The fence system is suitable for decorative moulding, groove cutting, and edge shaping applications.
Spindle and Cutter Structure
The spindle structure supports different woodworking cutter tools for various processing requirements.
Applications
Round edge processing
Chamfering
Groove cutting
Decorative shaping
Cabinet door profiling
Furniture edge moulding
Different cutter tools can be installed according to various woodworking profile requirements.

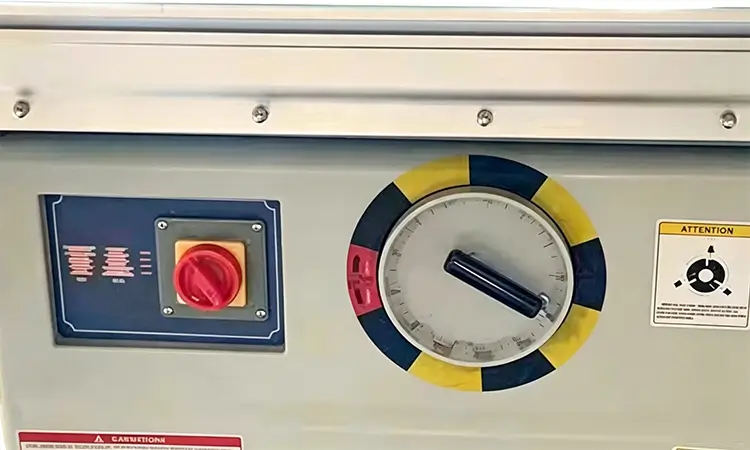

Convenient Adjustment Wheel
The large adjustment wheel allows operators to quickly control spindle height according to different machining requirements.
Benefits
Easy machine setup
Flexible cutting depth adjustment
Faster cutter positioning
Improved productivity
Convenient daily operation
Many woodworking factories still prefer mechanical adjustment systems because reliable manual structures are easier to maintain than complicated electronic systems that suddenly decide they no longer cooperate with humanity.
Main Processing Applications

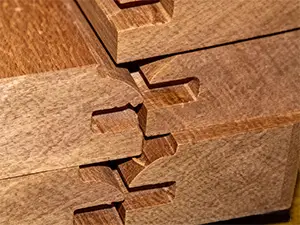

Tongue and Groove Processing
The machine is suitable for tongue and groove machining used for wooden joint structures, frame connection processing, and wood panel assembly applications.
Typical Applications
Furniture frame joints
Wooden panel assembly
Door frame connection
Cabinet structure processing
Decorative woodworking joints
Edge Profiling and Decorative Moulding
The machine supports decorative edge shaping and profile moulding operations for different woodworking industries.
Typical Applications
Furniture edge profiling
Decorative moulding production
Cabinet edge shaping
Wooden frame processing
Architectural wood line production
Round Edge and Chamfer Processing
Suitable for smooth wood edge finishing and decorative corner shaping operations.
Applications
Table corner processing
Furniture edge finishing
Decorative wood shaping
Cabinet corner treatment
Wooden panel chamfering

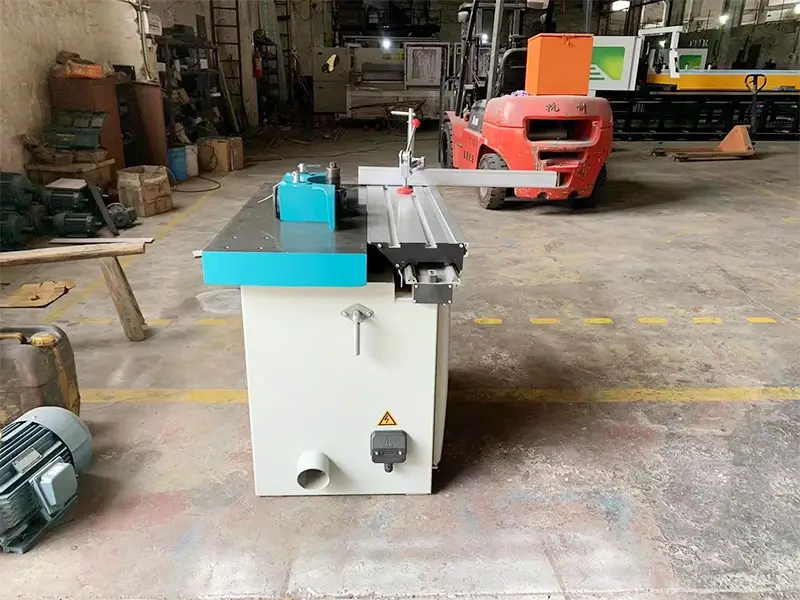

Cabinet Door and Wooden Door Processing
The machine is widely used for cabinet door shaping and wooden door profiling applications.
Suitable For
Raised panel door processing
Decorative cabinet edge machining
Wooden door frame shaping
Groove cutting operations
Window frame profiling
Suitable Materials
The machine can process multiple woodworking materials including:
Solid wood
MDF board
Plywood
Laminated boards
Composite wood panels
Hardwood materials
Softwood materials
Application Industries
Furniture Manufacturing
Suitable for table edges, chair components, decorative furniture moulding, and solid wood furniture production.
Cabinet Production
Widely used in kitchen cabinet manufacturing, wardrobe processing, and customized furniture factories.
Wooden Door Processing
Applicable for wooden door frame shaping, decorative edge profiling, and groove cutting operations.
Decorative Woodworking
Suitable for architectural moulding, interior decoration components, and custom woodworking product manufacturing.
The machine body adopts a durable and compact structure suitable for long-term industrial woodworking production.
2.Easy Operation
Simple mechanical adjustment systems help operators complete machine setup quickly and efficiently.
3.Wide Processing Range
Suitable for edge profiling, decorative moulding, groove cutting, furniture shaping, and woodworking processing applications.
4.Convenient Maintenance
The traditional mechanical structure allows easier daily maintenance and lower servicing costs for woodworking workshops.
5.Reliable Processing Performance
The combination of high spindle speed, stable feeding system, precision guide rail structure, and sliding table design ensures smooth woodworking results for different materials and processing applications.
Processing Samples Display
FAQ
What materials can the machine process?
The machine can process solid wood, MDF, plywood, laminated boards, hardwood materials, softwood materials, and composite wood panels.
Is the spindle height adjustable?
Yes. The spindle height can be adjusted through the large handwheel adjustment system for convenient cutting depth control.
Can the machine process cabinet doors?
Yes. The equipment is widely used for cabinet door shaping, decorative edge profiling, groove cutting, and wooden door processing applications.
Is the machine suitable for decorative moulding?
Yes. Different woodworking cutter tools can be installed for decorative moulding and furniture edge shaping operations.
What industries commonly use this machine?
The machine is commonly used in furniture manufacturing, cabinet production, wooden door processing, decorative woodworking, and custom woodworking industries.
Contact Us
Contact us for more machine details, woodworking cutter solutions, technical support, machine videos, and quotation information for your woodworking production requirements.
