Models :  BCMBCMA1330A

Application :Panel Furniture, Woodworking

Leadtime : 15-20days

Certificate : CE FDA

Voltage :

Customized :Size can be customized

Warranty : 2 years

Supply Ability : 20 Sets/Month

Oversea Warehouse&Office : Dubai,Wittingen Germany, Birmingham UK

E-mail: admin@bcamcnc.com
ACCESSORY
  • Advantage
  • Details
  • Specifications
  • Videos
  • Foot print
  • Download

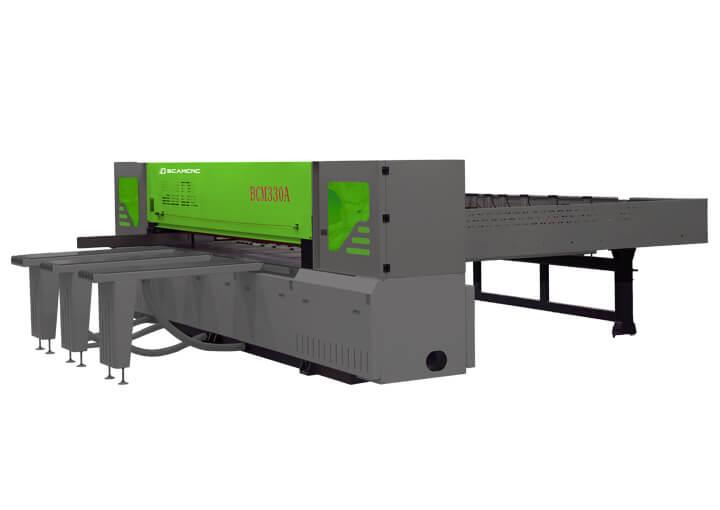

BCMA1330A Automatic Beam Saw is suitable for precision cutting of panels such as household appliances factories, electrical appliances factories, garment factories, hardware factories, etc., such as wood-based panels, aluminum panels, plexiglass, MDF, and density. Board, creative board, ABS board, PVC board, solid wood, etc.

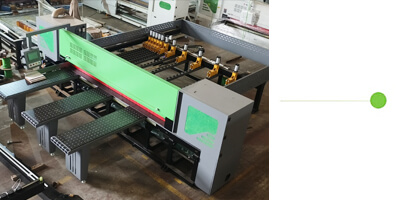

The bed and beam

The bed and beam are treated with aging and tempering to make it more stable

Durable without deformation.

Linear track design, stable operation, ensuring cutting accuracy

Taiwan helical gear 30 guide rail

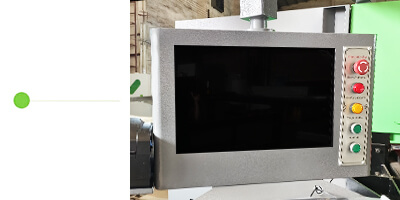

operating system

Yancheng original industrial computer, Siemens PLC, safe operation

Reliable, editable management of sawing plan and sawing tasks,

Compatible with optimized sawing software.

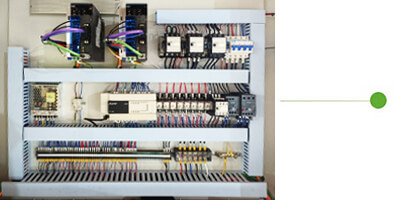

Built-in distribution box

Inovance Servo Drive

Omron switching power supply

Schneider Electric

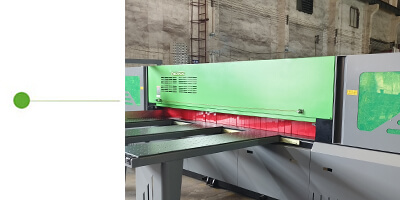

safety fence

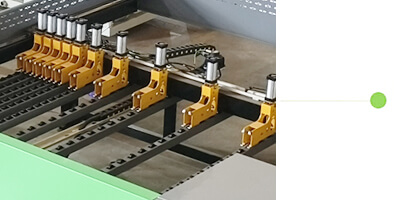

Linear rail short plate backing manipulator

High-performance manipulator servo feeding clamp,

Precision servo drive positioning

Automatic feeding, low labor intensity, high production efficiency

Aluminum alloy conveyor drag rack is not easy to deform



Technical Parameters


Maximum cutting length3300mm

Maximum cutting width

3300mm

Maximum cutting height

120mm

Minimum cutting board size

50*50mm

Main saw motor power

15kw

Main saw blade diameter

450mm

Saw shaft diameter

75mm
Spindle speed 4000r/min
Vice saw motor power 2.2kw
Vice saw blade diameter ¢200mm
Diameter of secondary saw shaft ¢50
Secondary saw shaft speed 6000r/min
Pushing system drive motor 1.8kw
Pushing system pushing speed 5-100m/min
Pulling speed of pushing system 5-100m/min
High voltage blower motor 5HP/3.0kw
Side shifting motor 90w
Saw base drive motor 3.4kw
Forward speed 0-120m/min
Return speed 120m/min
Height of table top 970mm
Clamp 8 groups
Equipment size (length * width * height) 6600*6400*1800mm
Weight 5.7T

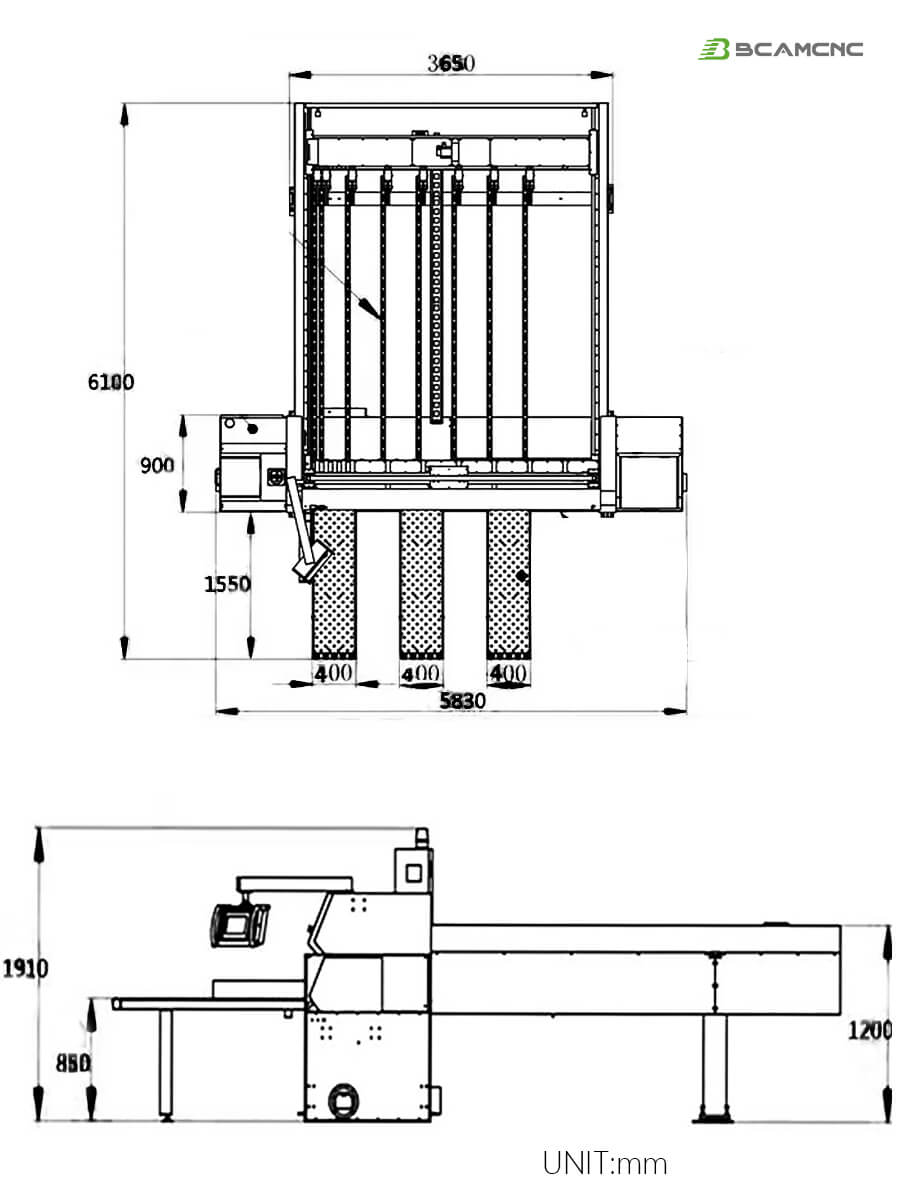

BCAM CNC SAW  FOOTPRINT.jpg

  • File Name Type Download
  • BCAM CNC Beam Saw BCM1330A pdf
