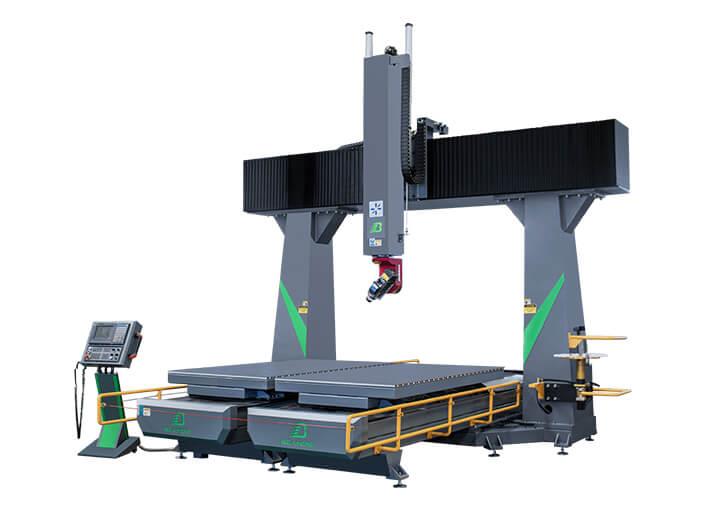

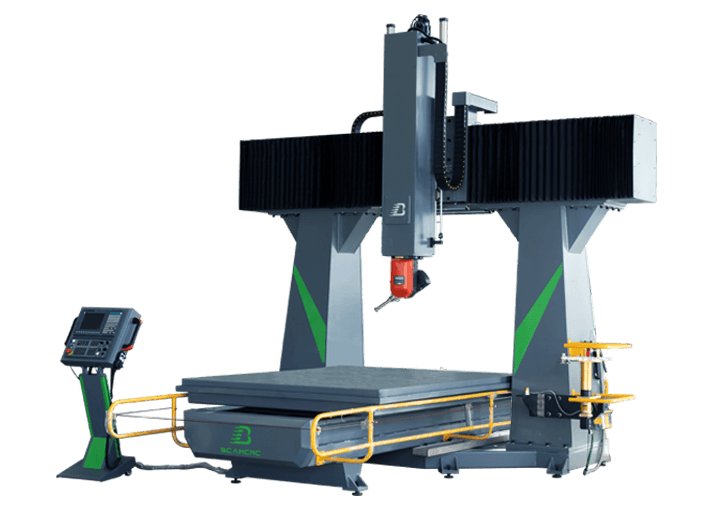

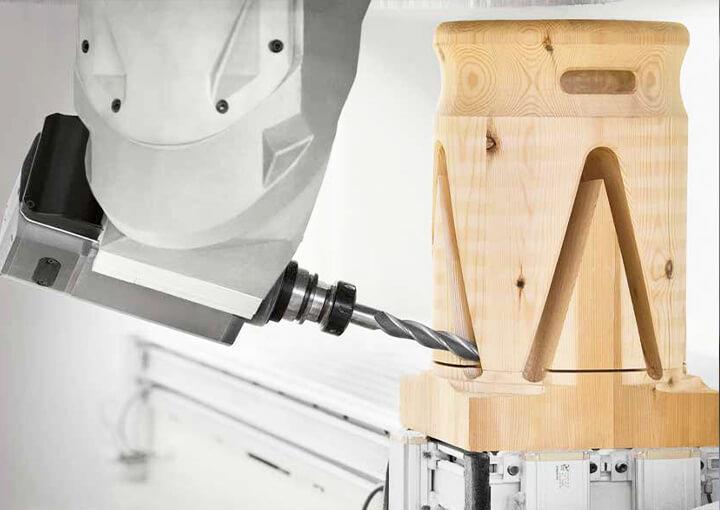

Models : BCM1325S-5 AXIS

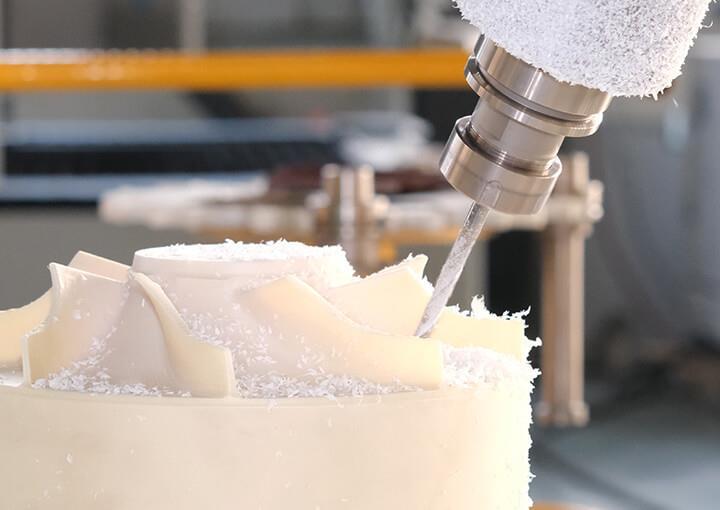

Application :Mould industry, decoration industry, furniture industry,Large metalloid moulds, building model,automotive foam mold, wooden ship model, rail wooden mold ,wooden model aviation, and wooden mold train

Leadtime : 45 working days

Certificate : CE ISO

Voltage :380V

Customized :available

Warranty : 3 Years

Supply Ability : 10 set/months

Oversea Warehouse&Office : Dubai , Gernmany ,United Kingdom

E-mail: admin@bcamcnc.com

ACCESSORY

Advantage
Details
Specifications
Videos
Foot print
Download

1.MATERIAL:Granite、Marble、Limestone、Slate、Travertine、Basalt，wood,Aluminum,Composite material
2. Constant Tip Speed Machining – Automatically varies the machine feed speed to allow the tip of tool to maintain a constant speed. This feature synchronizes the linear and rotary movements ensuring a constant and smooth cutting motion.
3. Volumetric 3D Laser Compensation – This procedure is standard on all machines prior to shipment to our customers. This feature compensates for position errors within the three dimensional working envelope of the machine.
4.Linear Compensation – This procedure is standard on all machines during the construction phase and compensates for inherent variances in components during machine construction. 5.Fixture Placement Compensation - Allows the user to mechanically locate three points on a fixture during initial program set up. These points are used as reference for our controller to automatically align the program to the new fixture location. 6.Tip Center Rotation - Allows for maintaining tool tip positioning when commanding a rotary axis to move in coordination with two or more linear axis.

1.MATERIAL:Granite、Marble、Limestone、Slate、Travertine、Basalt，wood,Aluminum,Composite material

2. Constant Tip Speed Machining – Automatically varies the machine feed speed to allow the tip of tool to maintain a constant speed. This feature synchronizes the linear and rotary movements ensuring a constant and smooth cutting motion.

3. Volumetric 3D Laser Compensation – This procedure is standard on all machines prior to shipment to our customers. This feature compensates for position errors within the three dimensional working envelope of the machine.

4.Linear Compensation – This procedure is standard on all machines during the construction phase and compensates for inherent variances in components during machine construction.

5.Fixture Placement Compensation - Allows the user to mechanically locate three points on a fixture during initial program set up. These points are used as reference for our controller to automatically align the program to the new fixture location.

6.Tip Center Rotation - Allows for maintaining tool tip positioning when commanding a rotary axis to move in coordination with two or more linear axis.

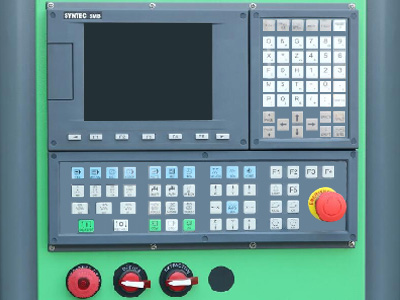

		The control system of BCAM1325S-5 AXIS adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the intelligence of the device.

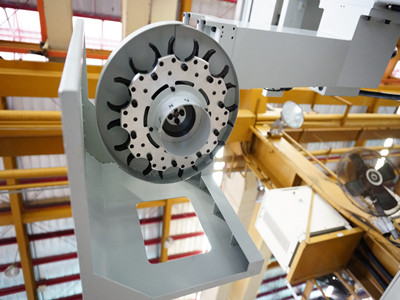

Italian HSD 9.5KW(12HP) Electrospindle with 12-position Automatic Tool Changer(ISO30). Feed Rate: X Axis 3150ipm(80mpm) Y Axis 3150ipm(80mpm) Z Axis 735ipm(18.7mpm) Y Axis 3150ipm(80mpm) A and C Axes 82.5 degree/sec Acc/Dec 205in/sec2 Axis Travel BCM1530 5 AXIS 15003000800MM A Axis ±120° C Axis ±213°

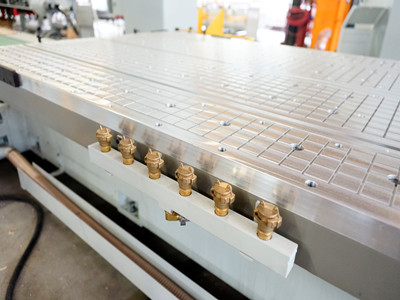

		Aviation aluminum vacuum countertop/cast iron countertop are available for optional ,Support customization of special tooling fixtures according to processed products

Tool Changer Max Quantity 15 tools Max Diameter 3.25" (82mm) positions full; 6.5" (165mm) adjacent positions empty Max Weight 12 lbs each / 96 lbs total (5.4kg / 43.5kg) Max Length 11" (280mm)

		Auto lubricating system, one touch can finish periodic maintenance easily.

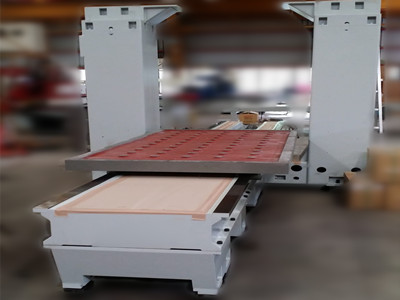

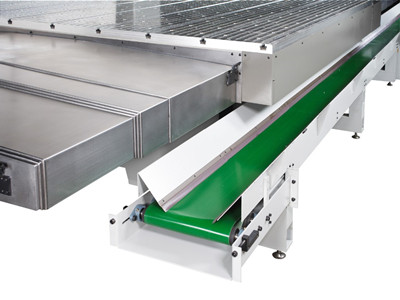

Panel Loading system with scissor lift and automatic panel alignment. The system ease of use ensures long term reliability .also Moving the panel with dynamic vacuum sunction cup loading system , A solution that adats to all sureface types.

BCS1325 Stone Carving machine

● Working area: 20003000200mm\|4′*8′
● CE standard
● Italy 13.5kw Italy HSD air cooling spindle cooled Up to 24,000, fully programmable HSK 63
● 20mm Heavy duty body(It can afford 3 tons )
● X ,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission
● Taiwan Hiwin 30 rails
● T-slot Table
● Schneider Electronic spare parts
● Automatic lubration system
● Taiwan Syntec 5 axis Control System
● Japan Omron limit switch
● High Torque Leadshine stepper motor and drivers
● Fuling Inverter 18kw
● Tool height sensor
● Standard box of tools
● Tools cooling system
● Stone 3D machining

Parameters		Standard Specifications BCM1325D 5AXIS
X,Y,Z Working Area		13002500200mm
Spindle Power		Italy 13.5kw Italy HSD air cooling spindle cooled Up to 24,000, fully programmable HSK 63
X,Y,Z Traveling Positioning Accuracy		±0.01/2000mm
Table Surface		Vacuum table + T-solt table
X,Y,Z Rail and Trasmission		X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate		70m/min
Max. Working Speed		50m/min
Cutting thickness		According materials
Spindle Speed		6000-24000RPM
Drive Motors		4 sets 750W Yaskawa servo motor and drivers
Working Voltage		AC380v/50HZ/3 phase
Command Language		G Code
Operating System		Taiwan Syntec 6MB control system
Interface		USB
Software Compatibility		Option:Type3/Ucancam/Artcam/Solidworks,etc.
Running Environment		Temperature: 0℃~45℃ Relative Humidity: 30%~75%

What materials can a CNC Router process? A BCAM CNC router can machine a lot of different materials. Here listed just a few materials that can be machined 2D or 3D: ►Metals / Non-ferrous metals ►Brass ►Aluminium ►Titanium ►Noble metals such as silver, gold ►Steel and cast steel ►Wood ►Multiplex ►Plastics ►Acrylic glass ►Granite and marble Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers. What criteria are decisive when buying a BCAM CNC Router? If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?” ►The size Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine. ►The motor and its performance Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you. ►Hardness and toughness of the material Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed. ►Precision A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results. With these four questions I quickly find out which CNC Router is suitable for my needs: 1.What size are my workpieces to be processed? 2.What engine power do I need for my hard / soft material? 3.How hard are the materials to be processed concerning the required torsional stiffness of the machine? 4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?

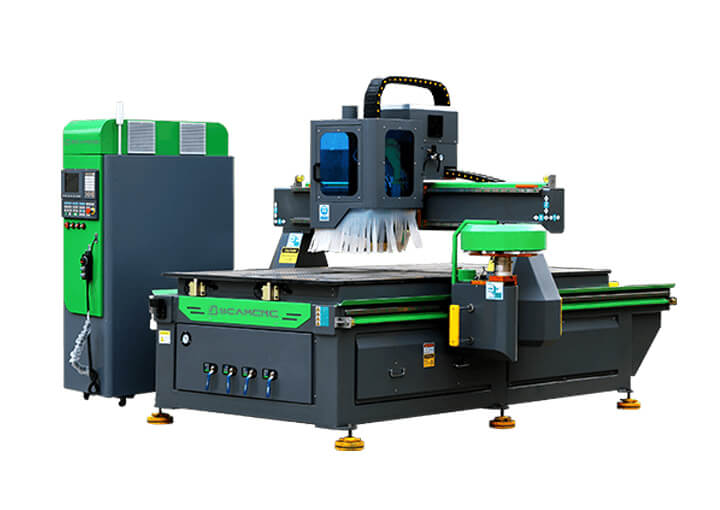

What materials can a CNC Router process?
A BCAM CNC router can machine a lot of different materials.
Here listed just a few materials that can be machined 2D or 3D:
►Metals / Non-ferrous metals
►Brass
►Aluminium
►Titanium
►Noble metals such as silver, gold
►Steel and cast steel
►Wood
►Multiplex
►Plastics
►Acrylic glass
►Granite and marble

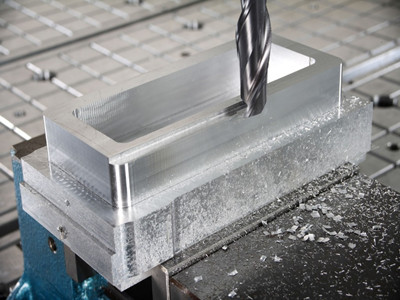

Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers.
What criteria are decisive when buying a BCAM CNC Router?
If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?”
►The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
►The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
►Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
►Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?
