90° V-Notch Cutting for PVC and UPVC Window Profiles | BCAMCNC
Last Updated: 2026-08-18
The BCAMCNC PVC Window Profile V Cutting Machine is designed for 90-degree V-groove processing in compatible PVC and UPVC window profiles. It features a dual saw blade assembly, pneumatic transmission and stepless feed-speed adjustment, with a 120 mm cutting width, 20–65 mm cutting height and 300–1600 mm positioning length. Send us your profile drawing or sample to confirm compatibility and receive a quotation.
SALE
Brand
- BCAMCNC
Model
- BCLJVW-60
Table Size
- 1350*500*1350mm
$951.00Original price was: $951.00.$859.00Current price is: $859.00.
Supply – 360 Units in Stock Available for Sale Every Month
Quality – CE Certified for Safety & Reliability
Warranty – One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

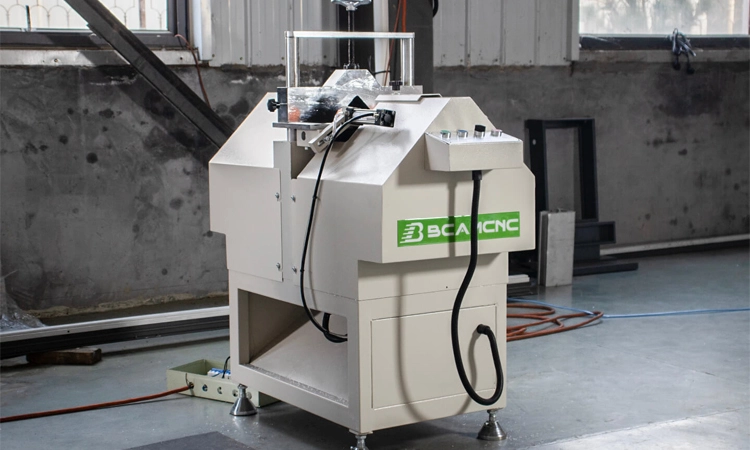

The BCAMCNC PVC Window Profile V Cutting Machine is designed to cut 90-degree V-shaped grooves in compatible PVC and UPVC window profiles. It is commonly used to prepare frame profiles for welded mullion window structures.
The machine combines a dual saw blade assembly, pneumatic transmission and stepless feed-speed adjustment for repeat V-groove processing in plastic window and door production.
What Is a PVC Window Profile V Cutting Machine?
A PVC Window Profile V Cutting Machine is a dedicated profile saw that creates a 90-degree V-shaped notch in a compatible PVC or UPVC frame profile. The prepared profile can then move to the required mullion welding or assembly process.
It may also be described as a PVC Profile V Cutting Saw, UPVC Profile V-Notch Cutting Saw or PVC Window Mullion V Cutting Machine. Profile compatibility depends on the cross-section, reinforcement and required V-groove position.
Technical Specifications
Technical item
Specification
Cutting shape
90-degree V groove
Input voltage
380 V / 50 Hz
Input power
2 × 1.1 kW
Working air pressure
0.5–0.8 MPa
Air consumption
30 L/min
Spindle speed
2800 r/min
Saw cutting width
120 mm
Saw cutting height
20–65 mm
Cutting positioning length
300–1600 mm
Feed speed
Steplessly adjustable
Overall dimensions
1800 × 1380 × 1300 mm
The model number, machine weight, saw blade dimensions and profile compatibility should be confirmed before ordering.
Main Features and Machine Advantages

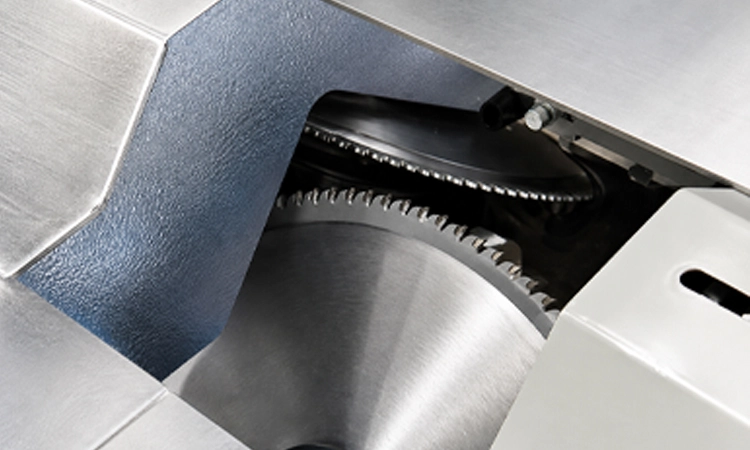

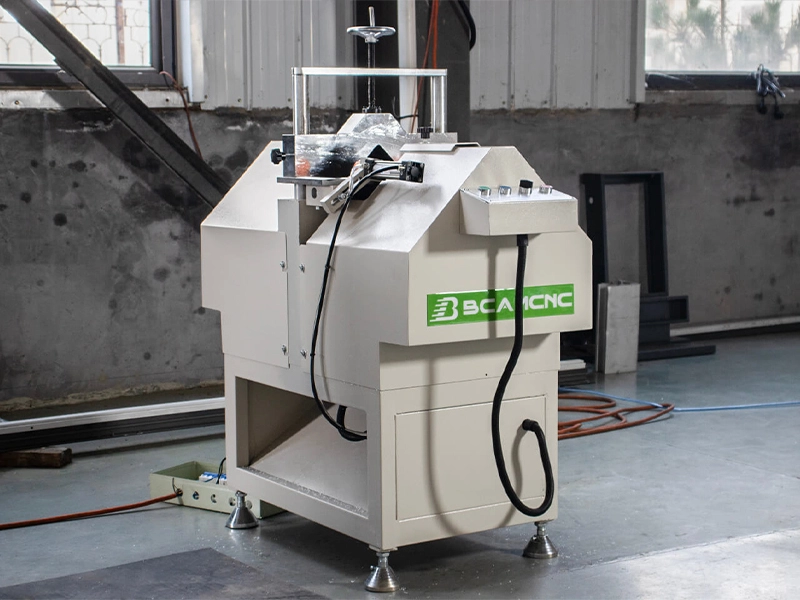

Dual saw blade V-cutting assembly
The visible cutting assembly uses two circular saw blades to form the required V-cutting geometry. Processing the V shape within one profile setup reduces repeated handling and helps maintain a consistent relationship between the two cutting surfaces.

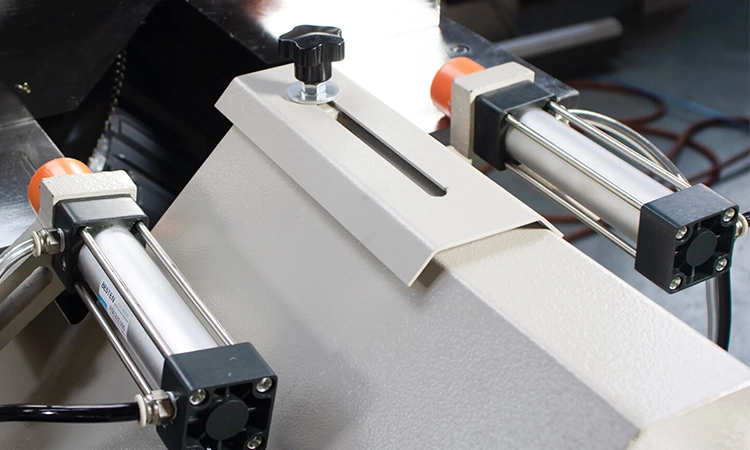

Pneumatic transmission and adjustable feed
The machine uses pneumatic transmission and has stepless feed-speed adjustment. Pneumatic assistance reduces manual effort, while the adjustable feed allows the cutting advance to be matched more closely to the profile and processing requirement.

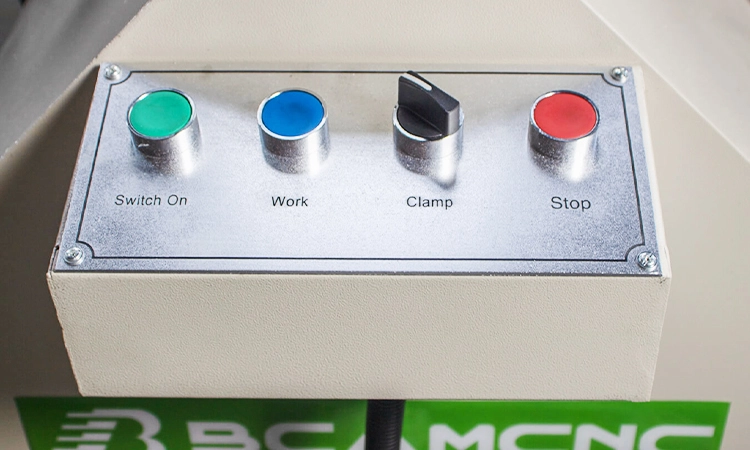

Clearly arranged control panel
The control panel separates the Switch On, Work, Clamp and Stop functions. Its clearly marked controls make the basic operating sequence easier to understand and keep the main commands within convenient reach.

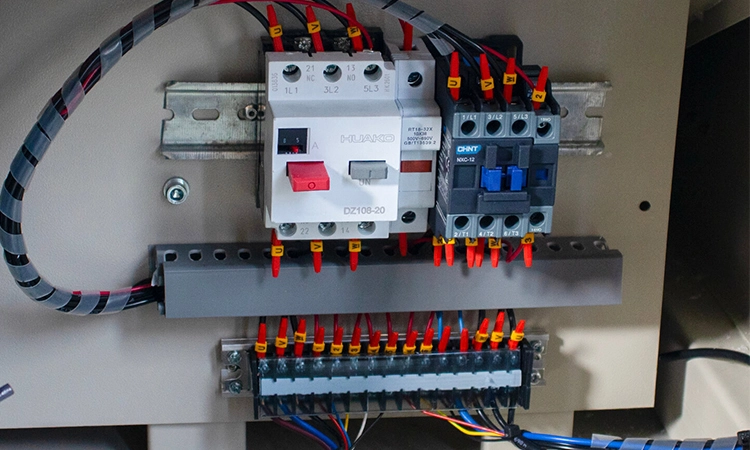

Organized electrical control section
The electrical section visibly includes a motor-protection device, contactor, terminal blocks and numbered wiring. The organized layout can make routine inspection and fault tracing more convenient. Exact protection functions should be checked against the final electrical drawing.

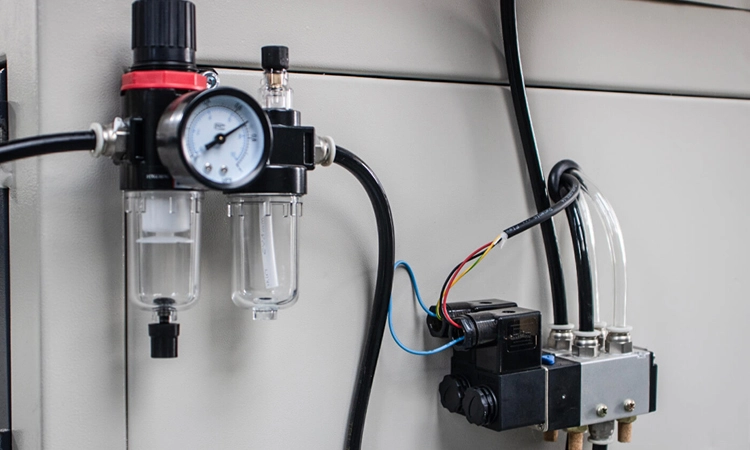

Air treatment and pressure-control assembly
The pneumatic assembly includes a visible pressure gauge, air-treatment components and a solenoid valve. The confirmed working-air pressure is 0.5–0.8 MPa, with stated air consumption of 30 L/min. Air treatment helps support stable pneumatic operation and reduces contamination entering the pneumatic circuit.
Applications
Welded mullion window preparation
Cuts a V-shaped groove in a compatible frame profile for window structures that use welded mullion connections.
PVC and UPVC profile processing
Suitable for 90-degree V-groove cutting in compatible PVC and UPVC window profiles within the confirmed processing range.
Window production line integration
The machine can be used alongside compatible profile cutting, welding and corner-cleaning equipment in a plastic window and door production workshop.
Main Components Configuration
Component
Specified brand
Saw motor
Huangshan Zhenyang
Saw blade
Rude
Solenoid valve
STNC
Air cylinder
Baidi
Pushbutton switches
ABB
Low-voltage electrical components
ABB
Terminal blocks
Weidmüller
Air hose
Youshun
The listed brands are based on the supplied component schedule. Final component brands and models should be confirmed in the signed quotation and purchase order.

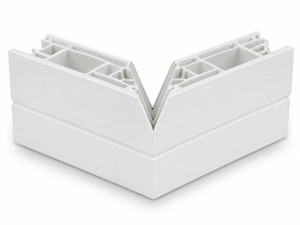

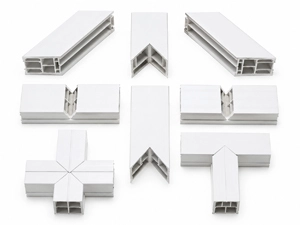

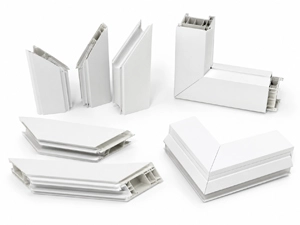

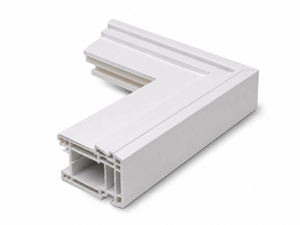

Processed Sample Display
Why Choose This PVC Profile V Cutting Machine?
Dedicated V-groove processing
The machine is configured specifically for 90-degree V-notch cutting rather than general-purpose profile cutting.
Adjustable pneumatic operation
Pneumatic transmission and stepless feed adjustment support a practical and repeatable cutting process.
Clear processing capacity
The confirmed technical data defines the cutting width, cutting height, positioning length, spindle speed and air requirements, helping buyers evaluate the machine for their production needs.
Accessible component layout
The visible electrical and pneumatic components are arranged in accessible areas for routine inspection and maintenance.
Frequently Asked Questions
Does the machine cut PVC and UPVC profiles?
It is intended for compatible PVC and UPVC window profiles. Customers should provide a profile drawing or sample so the cutting range and V-groove position can be checked.
Does the machine use two saw blades?
Yes. Two saw blades are visible in the cutting assembly and are arranged to produce the required V-cutting geometry. The exact cutting sequence should follow the final operating manual.
Is this an automatic UPVC V cutting machine?
The machine has powered controls and pneumatic operation. Automatic profile loading, CNC positioning and automatic line communication have not been confirmed and should not be assumed.
How can I get the PVC V-notch cutting machine price?
Send BCAMCNC your profile drawing, required V-groove position, expected production volume, factory voltage and delivery destination. The suitable configuration, price and delivery terms can then be confirmed.
Request a Quote
Send BCAMCNC your PVC or UPVC profile cross-section drawing, required V-groove dimensions and expected daily output.
The technical team can review your application, confirm profile compatibility and prepare a quotation for the appropriate PVC Window Profile V Cutting Machine configuration.
