Open Face Water Wash Spray Booth for Industrial Paint Mist Collection
Stainless Steel Water Curtain Paint Booth for Industrial Coating Applications
Last Updated: 2026-05-26
The Open Face Water Wash Spray Booth is an industrial paint mist collection system designed for spray painting applications requiring efficient ventilation and overspray control. Built with a stainless steel structure, the system utilizes a continuous water curtain and centrifugal exhaust blower to capture paint mist and improve workshop air cleanliness. Suitable for furniture coating, metal finishing, hardware spraying, and industrial surface treatment applications.
Brand
- BCAMCNC
Model
Table Size
- 3500 × 1500 × 2500 mm
Supplity – 360 Units in Stock Available for Sale Every Month
Standard – Meeting CE Standards in Terms of Quality & Safety
Warranty – One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
The Open Face Water Wash Spray Booth is designed for industrial spray painting environments that require efficient paint mist collection, stable airflow control, and long-term corrosion resistance. This industrial coating solution utilizes a continuous water curtain system to capture overspray particles and improve workshop air cleanliness during manual spraying operations.
Manufactured with a stainless steel structure and equipped with an industrial centrifugal blower, the system is suitable for metal parts coating, furniture finishing, hardware spraying, plastic component painting, and other industrial surface finishing applications.
Compared with dry filtration systems, this water curtain paint booth provides continuous overspray washing performance and helps reduce paint residue accumulation inside the ventilation system. The open-face structure also improves accessibility for operators handling large or irregular workpieces.
Product Overview
The Open Face Water Wash Spray Booth integrates a stainless steel water curtain panel, circulation water tank, paint sludge separation system, industrial exhaust blower, and independent electrical control cabinet into one complete industrial paint mist collection solution.
During operation, the centrifugal blower creates stable negative pressure behind the water curtain. Overspray particles are pulled toward the flowing water surface, where paint mist is captured and washed into the lower circulation tank. Internal airflow separation structures help remove excess moisture before the air is discharged through the exhaust system.
This industrial spraying system is manufactured using SUS201 stainless steel panels and includes a large-capacity water circulation structure designed for continuous industrial operation.
Technical Specifications
Standard Configuration
Item
Specification
Product Type
Open Face Water Wash Spray Booth

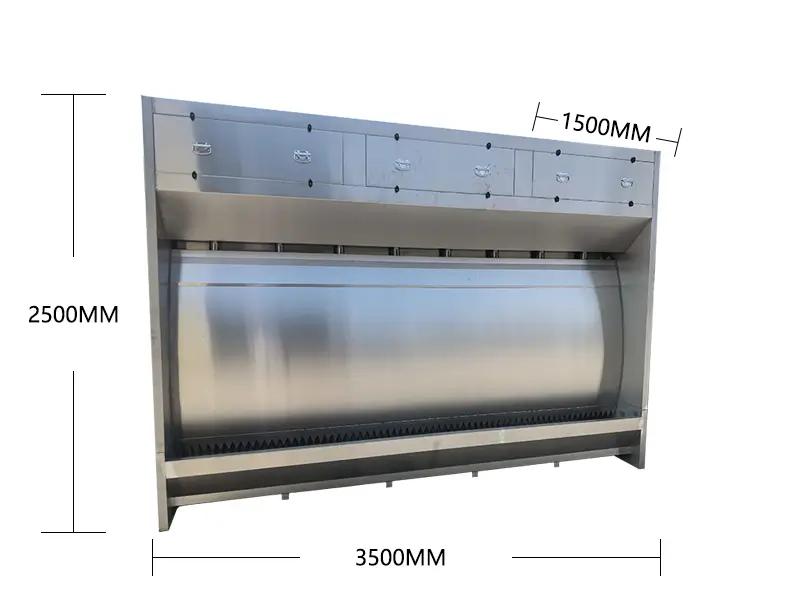

Booth Dimensions
3500 × 1500 × 2500 mm
Material
SUS201 Stainless Steel
Water Tank Thickness
1.5 mm
Upper Plate Thickness
1.2 mm
Side Panel Thickness
1.5 mm
Exhaust Fan Power
11 KW
Fan Type
Industrial Centrifugal Blower
Voltage
380V / 3 Phase / 50Hz
Electrical Control Cabinet
Included
LED Lighting
Included
Curved Water Curtain Structure
Included
Rainproof Exhaust Components
Included
Stainless Steel Construction Advantages
Corrosion Resistant Industrial Structure
The Stainless Steel Water Curtain Paint Booth is manufactured using stainless steel panels to improve durability in humid industrial painting environments. Compared with galvanized steel structures, stainless steel materials provide better corrosion resistance during long-term water circulation and paint mist exposure.
The smooth metal surface also improves cleaning efficiency because paint sludge and coating residue can be removed more easily during maintenance operations.
Professional Industrial Appearance
The spray booth utilizes reinforced structural framing to support stable industrial operation. The stainless steel exterior also provides a cleaner and more professional appearance for industrial coating workshops and production facilities.
Water Curtain Paint Mist Collection System
Continuous Water Curtain Operation
This industrial paint booth uses a flowing water curtain to collect overspray particles generated during spraying operations. Water continuously flows across the curtain panel to create a stable washing surface for paint mist collection.
As airborne coating particles move toward the rear airflow system, overspray residues contact the moving water curtain and enter the lower circulation tank.
This operating method helps reduce paint mist accumulation inside the booth and improves workshop ventilation conditions.
Paint Sludge Separation System
The lower circulation tank includes a stainless steel filter structure designed to capture larger paint residue particles before they enter the recirculation system.
This removable filtration design helps prevent pump blockage, reduces maintenance downtime, and improves the service life of the water circulation components.
The stainless steel filtration structure is also designed for convenient cleaning during daily maintenance operations.
Industrial Exhaust Ventilation System
Explosion-Proof Centrifugal Blower
The Water Wash Spray Booth is equipped with an industrial centrifugal blower designed to generate stable negative pressure inside the spraying area.
The ventilation system helps prevent paint mist leakage into the workshop while improving overspray transfer toward the water curtain section.
For industrial coating environments involving solvent-based paints, explosion-proof motor configurations may be selected according to project requirements and local safety regulations.
Multi-Stage Moisture Separation Structure
Internal labyrinth baffle structures are installed behind the water curtain area to help separate moisture from the airflow before air discharge.
This design helps reduce water carryover into the exhaust ducting system and improves protection for the centrifugal blower and ventilation components.
The multi-stage airflow separation structure also helps improve secondary paint mist capture efficiency.
Electrical Control System
Independent Electrical Control Cabinet
The system includes an independent electrical control cabinet designed for industrial operation management.
The control panel includes separate controls for the centrifugal blower and water circulation pump, allowing operators to manage airflow and water flow independently.
An emergency stop button is installed on the front panel to support safer industrial operation during unexpected situations.
Stable Industrial Power Configuration
The standard electrical configuration is 380V / 3 Phase / 50Hz, suitable for many industrial manufacturing environments.
Alternative electrical specifications may be customized according to destination country requirements and project conditions.
Open Face Spray Booth Design Benefits
Flexible Loading and Spraying Operation
The Open Face Water Wash Spray Booth allows operators to load and spray large workpieces directly from the front opening.
This open structure is suitable for:
Metal cabinet painting
Furniture coating
Hardware spraying
Plastic product finishing
Industrial equipment painting
Wood product surface treatment
The open-face design also improves accessibility for manual spray painting operations.
Suitable for Multiple Industrial Applications
This industrial spray booth can be used in various coating environments where paint mist collection and workshop ventilation are required.
Common application industries include:
Furniture manufacturing
Automotive parts coating
Hardware surface finishing
Plastic component painting
Industrial equipment production
Metal fabrication workshops
Maintenance and Cleaning
Convenient Inspection and Cleaning Access
The Water Wash Spray Booth includes rear maintenance access sections designed for internal inspection and cleaning.
Operators can inspect water flow conditions, internal baffle structures, and filtration components more conveniently during maintenance procedures.
Removable Filtration Components
The internal stainless steel filtration structures are designed for easy removal and cleaning.
This helps reduce maintenance downtime and supports continuous industrial operation.
The Water Wash Spray Booth may be customized according to project requirements.
Optional configurations may include:
Different booth dimensions
Explosion-proof electrical systems
Stainless steel upgrades
Additional lighting systems
Customized airflow configurations
Alternative exhaust fan specifications
External ducting connections
Customization availability depends on final project specifications.
Conclusion
The Open Face Water Wash Spray Booth provides an efficient industrial solution for paint mist collection and spray painting ventilation. With its stainless steel structure, water curtain washing system, industrial centrifugal blower, and maintenance-friendly design, the system is suitable for a wide range of industrial coating applications.
For manufacturers seeking a Stainless Steel Water Curtain Paint Booth with stable airflow performance and convenient maintenance access, this industrial spraying solution supports cleaner workshop environments and improved operational efficiency.
