The Double-head Hinge Boring Machine is designed for precise 35mm hinge hole drilling in cabinet and furniture production. Featuring dual-head efficiency, stable performance, and accurate positioning, it helps improve consistency while reducing manual labor in woodworking applications.
Original price was: $1,120.00.$1,079.00Current price is: $1,079.00.
In furniture manufacturing, hinge installation is one of those steps that quietly determines whether your final product feels professional or problematic. Misaligned holes lead to door sagging, uneven gaps, and endless adjustments.
The Double-head Hinge Boring Machine is designed to solve this specific problem with consistent accuracy and repeatability. Instead of relying on manual drilling or improvised setups, it provides a stable and standardized method for hinge hole processing in cabinet and furniture production.
This machine focuses on practical performance: precise drilling, reliable positioning, and efficient workflow integration.
The Double-head Hinge Boring Machine is used to drill hinge cup holes (commonly 35mm) along with side pilot holes for mounting screws. These holes are essential for installing concealed hinges in cabinet doors, wardrobe panels, and other wooden components.
In production environments, the difference between manual tools and a dedicated hinge drilling system becomes obvious very quickly.
| Method | Accuracy | Time per Hole | Labor Dependency |
|---|---|---|---|
| Manual Hand Drill | Low (operator dependent) | 20–40 seconds | High |
| Bench Drill Press | Medium | 10–20 seconds | Medium |
| Double-head Hinge Boring Machine | High (consistent positioning) | 3–5 seconds | Low |
This comparison reflects typical workshop conditions. While actual results vary depending on operator skill and setup, the advantage of a dedicated hinge boring machine is clear in repetitive production scenarios.
The double-head configuration allows two drilling operations to be performed simultaneously. Compared to a single-head hinge drilling machine, this improves production efficiency without increasing complexity.
Each drilling head functions as a multi spindle hinge boring machine unit, enabling simultaneous drilling of the hinge cup and pilot holes. This ensures consistent spacing and alignment.

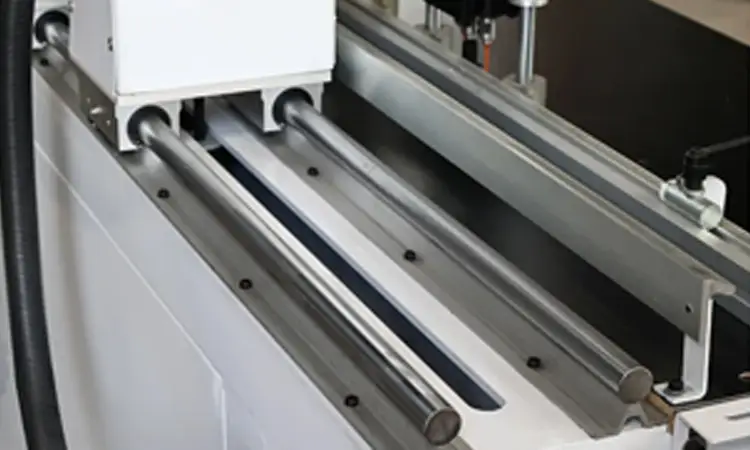

The double guide rail system enhances positioning accuracy and reduces deviation during operation. This is particularly important in cabinet hinge boring machine applications where repeatability is required.
The machine is equipped with a stable motor system designed for continuous operation. It maintains consistent drilling speed, contributing to uniform hole quality across batches.
A solid ruler and positioning caliper allow operators to quickly adjust drilling distances. This supports flexible production needs in furniture hinge drilling machine workflows.
The welded frame structure minimizes vibration and maintains stability during operation. Reduced vibration contributes to cleaner hole finishes and longer tool life.
Specifications may vary slightly depending on configuration and application requirements.
The operation of the Double-head Hinge Boring Machine follows a simple and efficient process:
This process reduces manual handling and improves consistency compared to traditional hinge hole drilling machine methods.
The Double-head Hinge Boring Machine is suitable for a wide range of woodworking applications, including:
It is commonly used in workflows involving cabinet door hinge boring machine and kitchen cabinet hinge drilling machine operations.
The main advantages of this machine come from its ability to improve consistency and reduce manual dependency:
Compared to a fully automated CNC hinge boring machine, this solution provides a practical balance between cost, control, and productivity.
BCAMCNC focuses on providing reliable woodworking and CNC machinery for real production environments. As a hinge boring machine manufacturer, the company emphasizes practical design, stable performance, and long-term usability.
Regular cleaning of dust and debris is recommended. Drill bits and moving parts should be checked periodically, and lubrication should follow standard workshop maintenance schedules.
The machine is primarily configured for standard 35mm hinge cup drilling. Other sizes can be achieved by changing tooling depending on requirements.
With proper tools, drill bit replacement typically takes only a few minutes and does not require complex adjustments.
Yes. The double-head structure and stable performance make it suitable for medium to high production environments, especially in furniture manufacturing.
The Double-head Hinge Boring Machine provides a practical and reliable solution for hinge hole drilling in furniture production. By combining stable structure, accurate positioning, and efficient operation, it helps manufacturers maintain consistent product quality.
In production environments, consistency is not optional. It is the standard.
