Industrial Woodworking Jointer Machine for Precision Surface Flattening and Edge Jointing
Heavy Duty Woodworking Jointer Machine for Solid Wood Processing and Panel Preparation
Last Updated: 2019-05-19

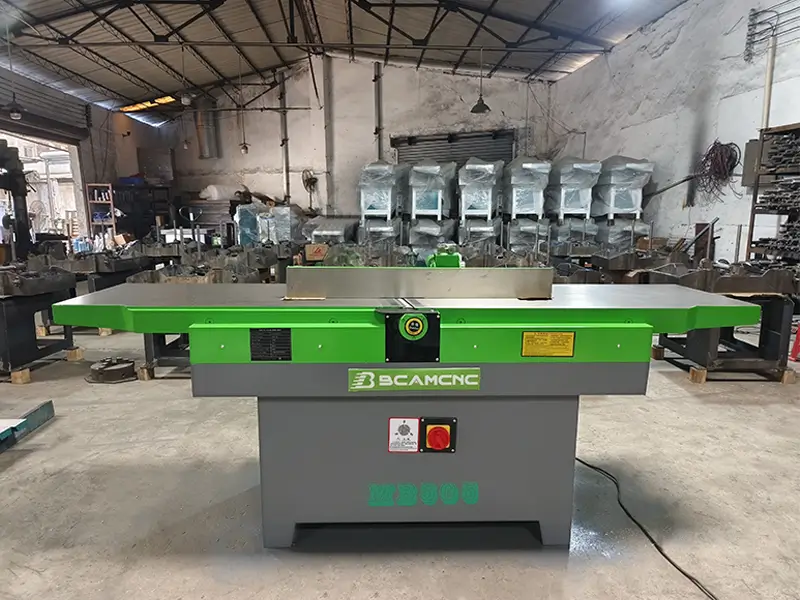

The BCAMCNC woodworking jointer machine is designed for precision surface flattening and edge jointing of solid wood boards. Featuring a heavy-duty cast iron worktable and straight knife cutter head, the machine delivers stable performance for industrial woodworking applications.
Brand
- BCAMCNC
Model
- BCMB505B
Table Size
- 2200 × 500 mm
Supplity – 360 Units in Stock Available for Sale Every Month
Standard – Meeting CE Standards in Terms of Quality & Safety
Warranty – One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

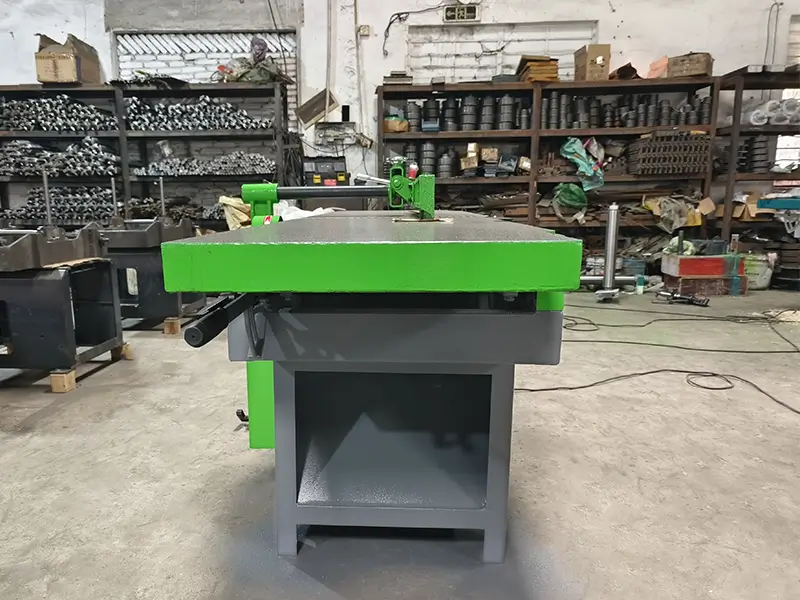

The BCMB505B woodworking jointer machine is designed for industrial solid wood processing, precision surface flattening, and straight edge jointing applications. Built with a heavy-duty cast iron structure, extended worktable, and high-speed straight knife cutter head system, this woodworking jointer machine helps furniture factories and woodworking workshops improve machining accuracy, feeding stability, and production efficiency.
The woodworking jointer machine is suitable for processing solid wood boards, timber panels, hardwood materials, and furniture components before thickness planing, panel gluing, and assembly operations.

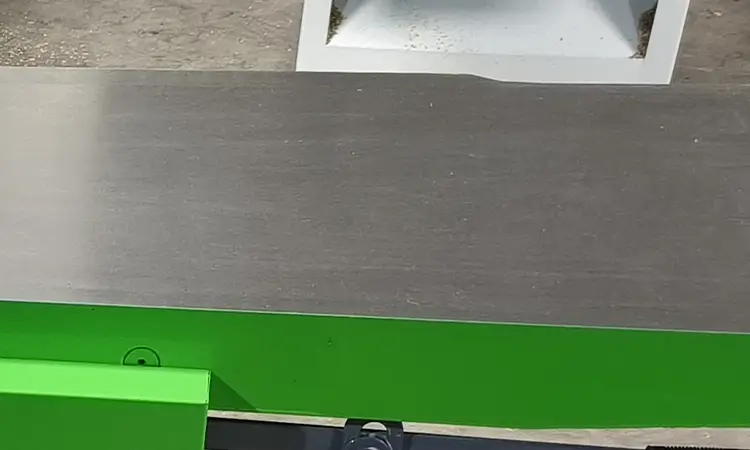

Extended Cast Iron Worktable for Stable Long Board Processing
The woodworking jointer machine features a precision-ground cast iron worktable designed to support stable feeding during long board processing applications. The extended table structure helps improve straightness accuracy and provides reliable support for large timber components during continuous operation.
The rigid machine structure also helps reduce vibration during industrial woodworking production.
Precision-ground cast iron worktable
Stable feeding for long wood boards
Reduced vibration during continuous operation
Improved straightness accuracy during jointing

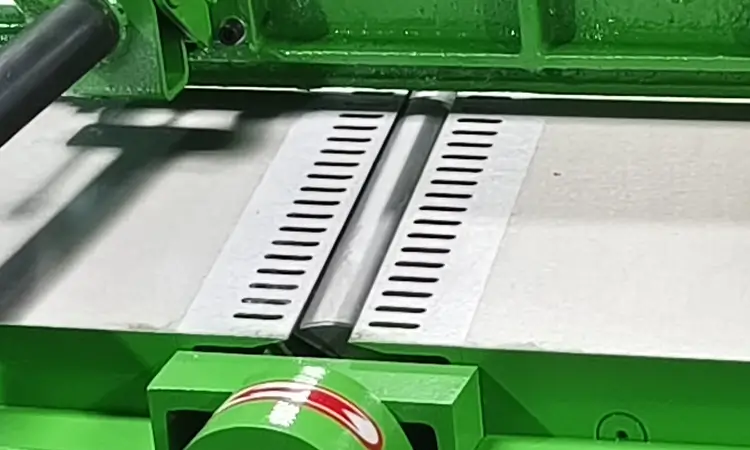

High-Speed Straight Knife Cutter Head System

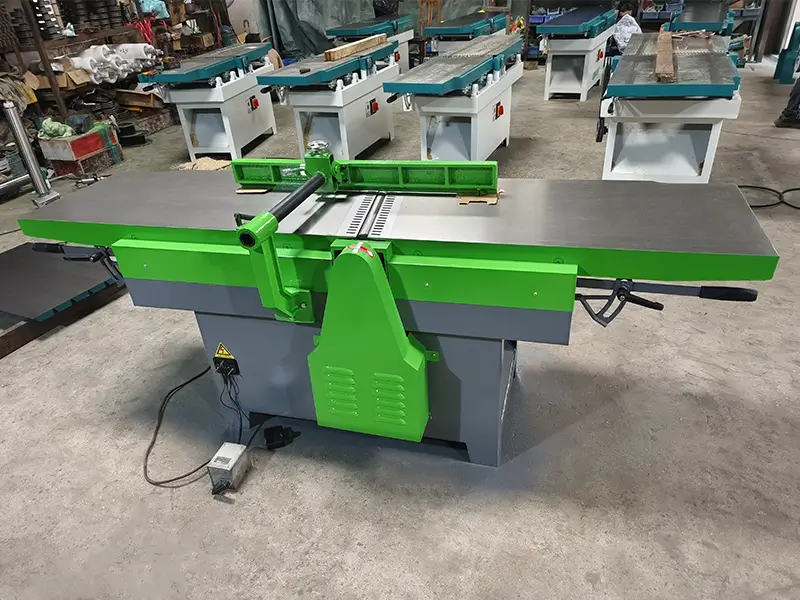

The woodworking jointer machine uses a straight knife cutter head system designed for stable cutting performance and efficient material removal during industrial woodworking applications.
Combined with the high-speed spindle rotation, the cutter head supports smooth surface flattening and accurate edge jointing for solid wood boards and timber materials.
Straight knife cutter head structure
Stable cutting performance during operation
Smooth material removal for woodworking applications
Suitable for industrial surface flattening and edge jointing
Industrial Motor System for Reliable Production Performance
The woodworking jointer machine is equipped with a 4KW industrial motor system designed for stable operation during continuous woodworking production.
The motor configuration supports reliable power output for high-load processing applications in furniture factories and timber processing workshops.
4KW industrial motor configuration
Stable power output during continuous operation
Suitable for high-load woodworking production
Reliable machining performance for factory applications

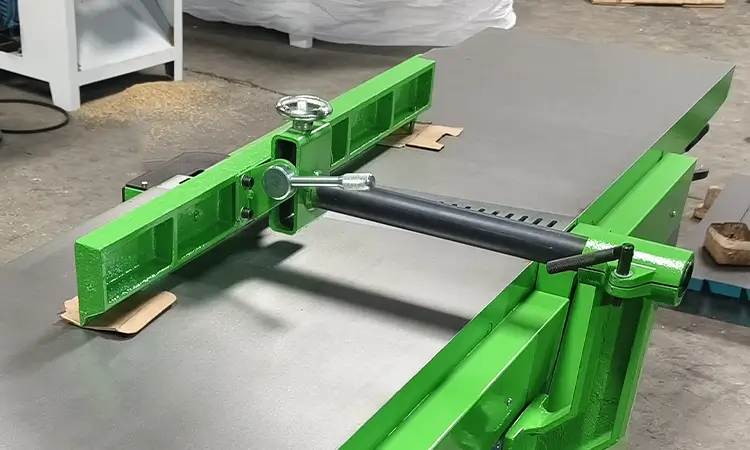

Adjustable Fence System for Straight and Bevel Edge Jointing
The woodworking jointer machine is equipped with an adjustable fence system for straight edge correction and bevel edge processing. The fence structure helps maintain guiding accuracy during continuous woodworking applications.
The adjustable fence angle also supports different processing requirements for furniture production and timber preparation.
Suitable for straight edge jointing
Supports bevel edge processing up to 45°
Stable fence structure for accurate guiding
Ideal for panel preparation before gluing

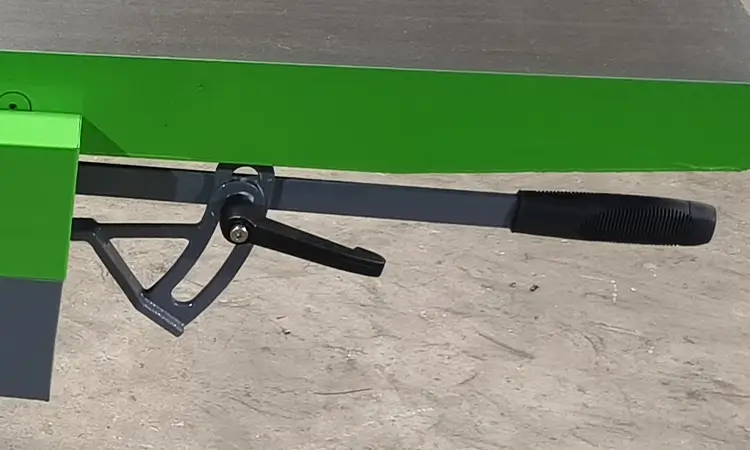

Adjustable Infeed Table for Precise Cutting Depth Control
The adjustable infeed table allows operators to control cutting depth according to different woodworking materials and processing requirements.
The manual adjustment system supports convenient operation and stable machining consistency during industrial production.
Adjustable cutting depth up to 5 mm
Stable and accurate table adjustment
Easy manual operation during processing
Improved machining consistency for woodworking applications
Emergency Stop Safety Switch
The woodworking jointer machine is equipped with an emergency stop safety switch designed to improve operational safety during industrial woodworking applications.
The emergency stop system allows operators to quickly shut down the machine when necessary during daily production and maintenance operations.
Emergency stop switch for safer operation
Fast machine shutdown during emergencies
Improved operational safety for woodworking workshops
Suitable for industrial woodworking environments
Technical Specifications
Item
Specification
Machine Model
BCMB505B
Machine Type
Industrial woodworking jointer machine
Maximum Planing Width
500 mm
Maximum Cutting Depth
5 mm
Cutter Head Type
Straight knife cutter head
Cutter Head Speed
5800 r/min
Worktable Size
2200 × 500 mm
Fence Size
1100 × 110 mm
Fence Tilt Angle
45°
Motor Power
4 KW
Standard Voltage
380V / 3 Phase / 60Hz
Sample Display
Applications and Materials
The woodworking jointer machine is suitable for industrial woodworking production involving solid wood boards, timber materials, and furniture components.
1.Suitable Materials
Solid wood boards
Hardwood materials
Softwood timber
Timber panels
Furniture components
2.Typical Woodworking Applications
Surface flattening before thickness planing
Straight edge jointing for panel gluing
Bevel edge processing for furniture components
Solid wood board correction
Timber preparation for furniture production
Cabinet and wood door manufacturing
3.Suitable Industries
Furniture manufacturing factories
Cabinet production workshops
Timber processing plants
Interior decoration manufacturers
Industrial woodworking workshops
Global Export Support and Service
BCAMCNC provides woodworking machinery support for industrial customers, furniture manufacturers, and woodworking production facilities worldwide.
Export Packaging Support
The woodworking jointer machine can be packed according to international export transportation requirements for sea freight delivery and long-distance shipment.
Voltage and Configuration Customization
Different voltage configurations and machine specifications can be discussed according to local industrial power standards and project requirements.
Technical Communication and After-Sales Support
BCAMCNC provides technical communication, machine consultation, and after-sales support for woodworking machinery projects and industrial processing solutions.
Frequently Asked Questions
1.What is a woodworking jointer machine used for?
A woodworking jointer machine is mainly used for surface flattening, edge straightening, and bevel edge processing before further woodworking operations such as thickness planing and panel gluing.
2.What materials can this woodworking jointer machine process?
The woodworking jointer machine is suitable for solid wood, hardwood, softwood timber, and timber board processing applications.
3.Is the woodworking jointer machine suitable for industrial production?
Based on the machine structure, worktable size, motor configuration, and processing capacity, the woodworking jointer machine is designed for industrial woodworking applications.
4.Can the woodworking jointer machine process bevel edges?
Yes. The adjustable fence system supports bevel edge processing up to 45° according to the machine specifications.
5.How does the extended worktable improve processing performance?
The extended worktable provides stable support for long boards during jointing operations and helps improve straightness accuracy during woodworking production.
Request a Quote for the Woodworking Jointer Machine
Looking for a stable and efficient woodworking jointer machine for your furniture factory, timber processing workshop, or woodworking production line?
Contact BCAMCNC today for machine details, factory pricing, international shipping solutions, and customized woodworking machinery support.
