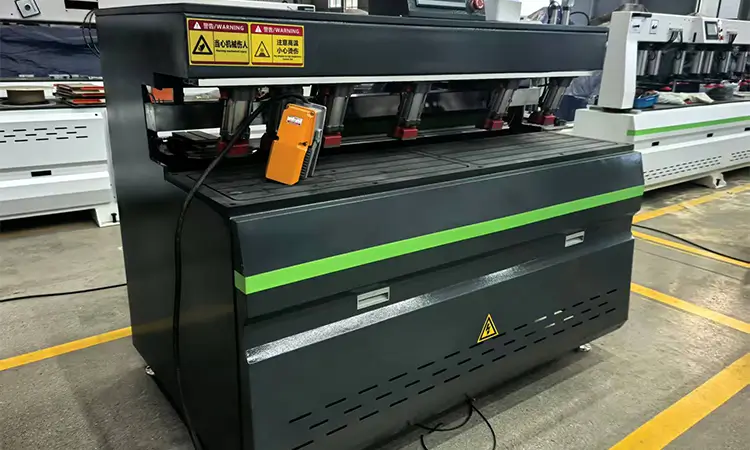

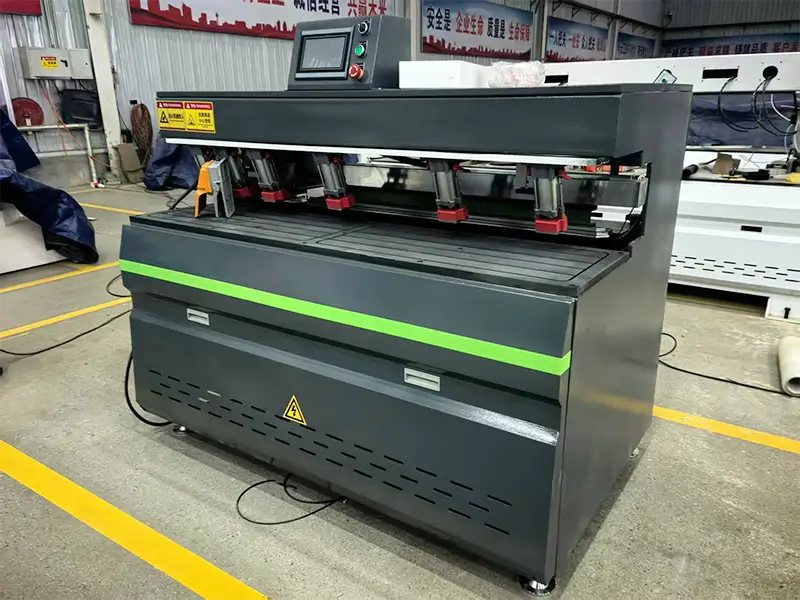

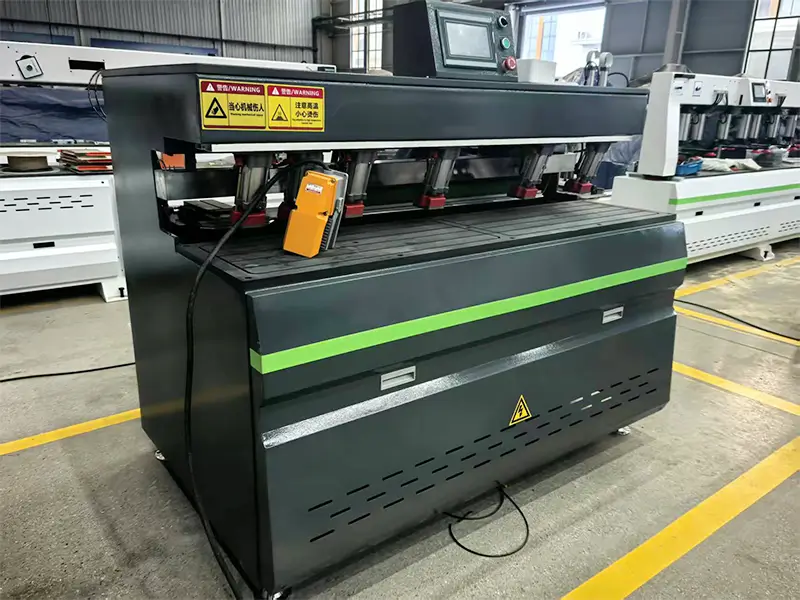

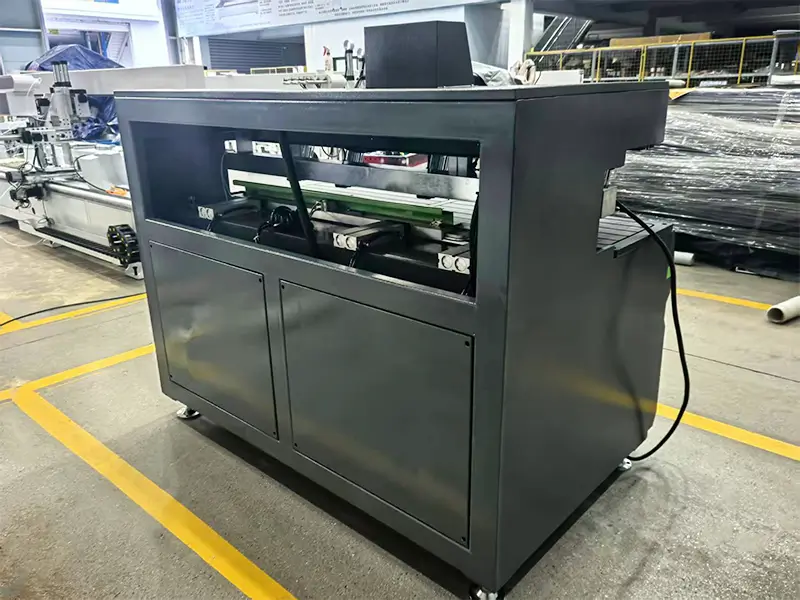

Cabinet Door Profile Laminating Machine for Handleless Kitchens
High-Efficiency J-Pull and C-Pull Profile Edge Laminating Machine for Modern Cabinetry Production
Last Updated: 2026-06-02
The Cabinet Door Profile Laminating Machine is designed for laminating edge materials onto J-pull, C-pull, bevel-edge, and other handleless cabinet door profiles. Using customized molds, heating, and pneumatic pressure, it helps furniture manufacturers achieve consistent profile edge processing for modern kitchen cabinets, wardrobes, and custom furniture production.
Brand
- BCAMCNC
Model
- BCM-1200
Table Size
- 1700 × 1100 × 1550 mm
Supplity – 360 Units in Stock Available for Sale Every Month
Standard – Meeting CE Standards in Terms of Quality & Safety
Warranty – One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
The furniture industry continues to move toward minimalist and handleless cabinet designs. Modern kitchens, wardrobes, bathroom vanities, and custom furniture projects increasingly use integrated handle profiles such as J-pull, C-pull, bevel-edge, and other decorative recessed structures.
While conventional edge banding equipment performs well on straight edges, it often faces limitations when processing complex handle profiles that require precise pressure inside grooves, curves, and recessed areas.
The Cabinet Door Profile Laminating Machine is designed to assist manufacturers in laminating edge materials onto shaped cabinet door profiles. By combining controlled heating, pneumatic pressure, and profile-specific molds, the machine supports the production of modern handleless furniture components with improved consistency and efficiency.
This equipment is suitable for furniture manufacturers seeking a dedicated solution for profile edge laminating applications where traditional straight-edge processing methods may not be sufficient.
Why Traditional Edge Banders Struggle with Handleless Door Profiles
Standard edge banding machines primarily rely on straight pressure rollers designed for flat or slightly angled edges.
When processing J-pull handles, C-pull channels, horn-shaped profiles, or other recessed structures, conventional rollers may not be able to apply sufficient pressure inside the profile geometry.
As a result, manufacturers may encounter challenges such as:
Incomplete bonding inside grooves
Uneven pressure distribution
Additional manual finishing work
Lower production consistency
Reduced production efficiency
The Cabinet Door Profile Laminating Machine addresses these challenges by utilizing dedicated profile molds and multi-directional pneumatic pressure systems designed for shaped edge structures.
Key Advantages
Designed for Handleless Cabinet Doors
The Cabinet Door Profile Laminating Machine is specifically intended for profile-based cabinet door designs commonly used in modern furniture manufacturing.
Suitable applications may include:
J-pull cabinet doors
C-pull cabinet doors
Beveled-edge cabinet doors
Decorative handle profiles
Special-shaped furniture panels
Profile-Specific Mold Technology
Different handle profiles require different pressure geometries.
Customized aluminum molds can be developed according to profile requirements, helping edge materials conform more closely to the shape of the workpiece.
Combined Heating and Pressure Process
The machine integrates heating and pneumatic pressure to assist profile edge laminating operations.
The heating system helps prepare edge materials before pressing, while the pneumatic system applies pressure according to the profile shape.
Improved Production Consistency
Compared with manual profile finishing methods, the Cabinet Door Profile Laminating Machine helps standardize processing procedures and supports repeatable production results.
Compact Manufacturing Solution
The machine can be integrated into existing furniture production lines and may serve as a dedicated workstation for profile edge laminating applications.
Machine Details
Heating Zone
The heating section is designed to prepare edge materials before the pressing process.
Depending on the selected material and production requirements, heating parameters can be adjusted through the control system.

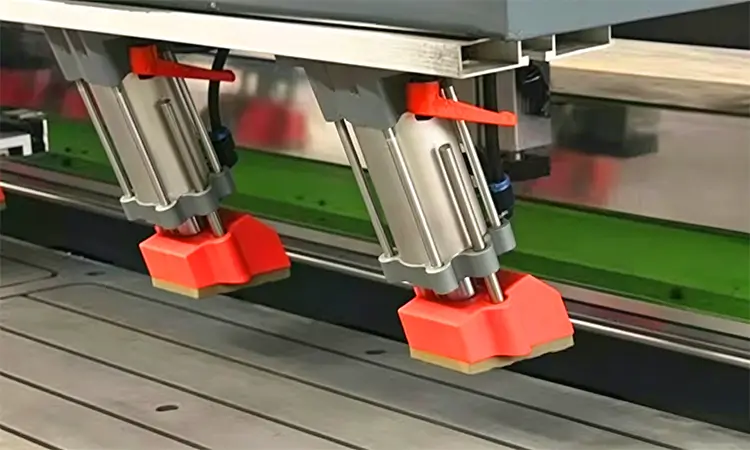

Pneumatic Pressing System
The pneumatic system applies pressure through vertical and horizontal movement, allowing profile molds to contact shaped surfaces more effectively.

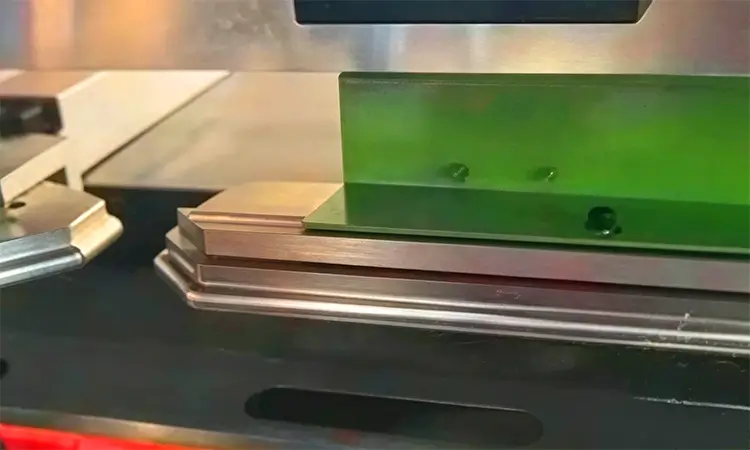

Profile Mold Assembly
Profile molds are one of the most important components of the Cabinet Door Profile Laminating Machine.
Different mold designs can be produced according to customer profile drawings and product requirements.

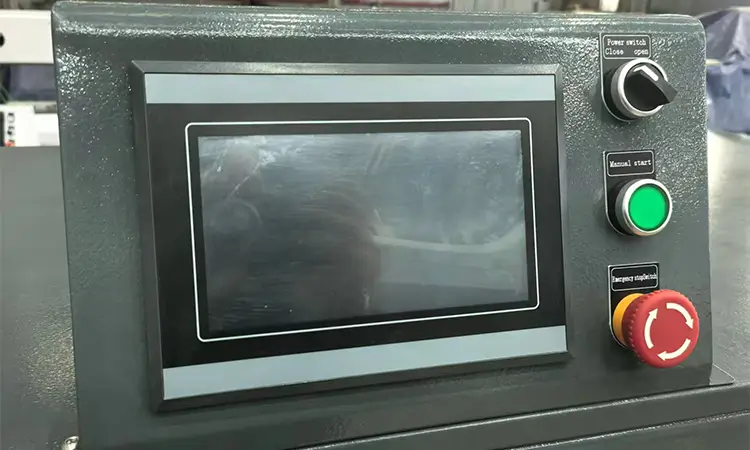

Control Interface
The touch-screen control system allows operators to manage machine settings and production parameters through a centralized interface.

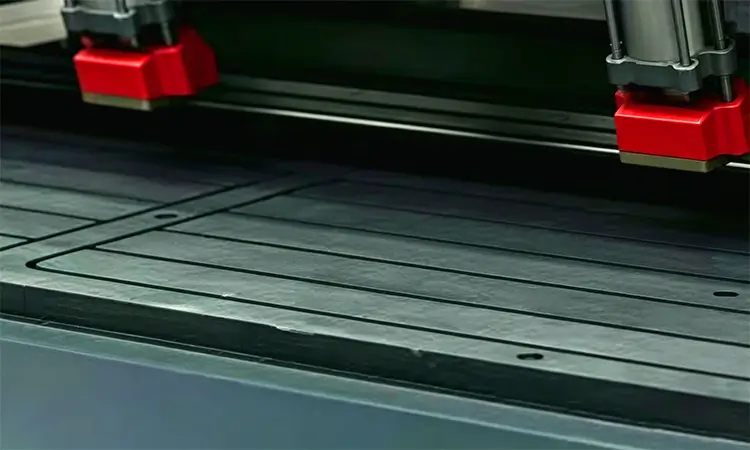

Worktable Structure
The worktable is designed to support panel positioning and handling during the laminating process.
Production Workflow
Panel Preparation
The cabinet door panel is prepared according to the desired handle profile design.
Edge materials and adhesive systems are selected according to production requirements.
Positioning
The workpiece is placed onto the machine worktable and positioned for processing.

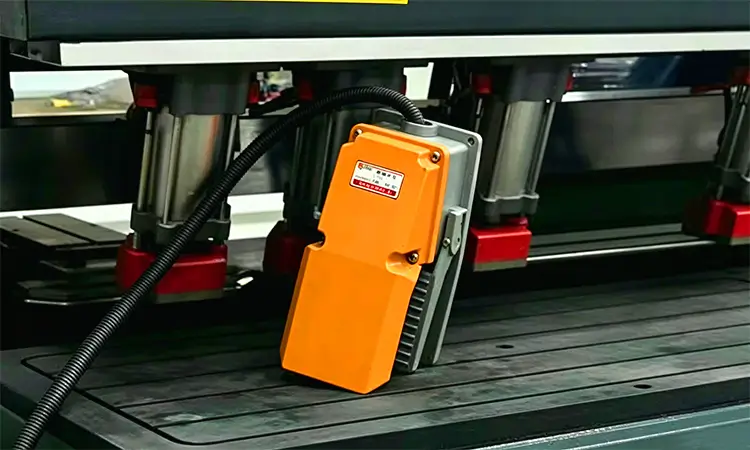

The positioning sensor helps detect panel placement before the pressing cycle begins, supporting consistent processing operations.
Heating and Pressing
The edge material is prepared through the heating process.
The pneumatic system then drives the profile mold to apply pressure along the profile geometry.
Cooling and Release
After the pressing cycle is completed, the component is released and prepared for the next production step.
Technical Specifications
The following specifications are based on currently available machine information.
Item
Specification
Machine Type
Cabinet Door Profile Laminating Machine
Processing Length
100 – 1200 mm
Workpiece Thickness
18 – 25 mm
Heating Power
6 KW
Power Supply
380V / 3 Phase / 50Hz
Air Pressure
0.6 – 0.8 MPa
Control System
Touch Screen Control
Mold Material
Aluminum Alloy

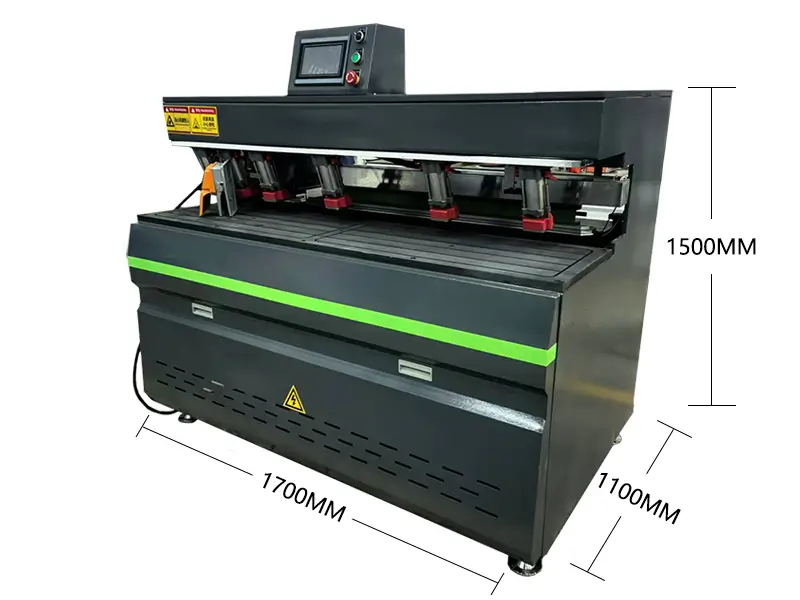

Machine Dimensions
1700 × 1100 × 1550 mm
Compatible Profile Types
J-Pull Door Profiles
Suitable for modern handleless kitchen and wardrobe doors utilizing integrated J-shaped finger pulls.
C-Pull Door Profiles
Supports profile laminating applications for C-channel cabinet door structures.
Beveled Handle Profiles
Can be configured for certain angled and bevel-edge handle designs through dedicated mold solutions.
Custom Profile Designs
Profile molds may be customized according to specific production requirements and cabinet door designs.
Application Industries
Kitchen Cabinet Manufacturing
Modern kitchen cabinet production increasingly utilizes handleless designs requiring specialized profile edge processing.
Wardrobe Door Production
The Cabinet Door Profile Laminating Machine can assist manufacturers producing contemporary wardrobe systems and closet furniture.
Custom Furniture Manufacturing
Suitable for furniture factories processing unique cabinet door profiles and customized panel structures.
Bathroom Vanity Production
Can be used for profile edge laminating applications in bathroom furniture manufacturing.
Sample Applications
Handleless Kitchen Cabinet Doors
For J-pull and C-pull cabinet door production.
Wardrobe Panels
For integrated-handle wardrobe systems.
Decorative Furniture Panels
For customized furniture designs featuring shaped edge structures.
Commercial Furniture Components
For office furniture and interior panel production requiring profile edge processing.
Custom Mold Solutions
J-Pull Mold Configuration
Developed for cabinet doors utilizing integrated J-shaped handle profiles.
C-Pull Mold Configuration
Designed for cabinet doors featuring continuous C-channel handles.
Bevel Profile Mold
Suitable for selected bevel-edge cabinet door applications.
Customized Profile Mold Development
Custom molds can be developed according to customer drawings, samples, and profile specifications.
BCAMCNC provides machinery solutions for furniture panel processing and cabinet manufacturing applications.
Customization Capability
Machine configurations and moledged designs can be adapted according to specific production requirements.
Application-Oriented Support
Equipment recommendations can be provided based on panel design, profile structure, and manufacturing goals.
International Project Experience
BCAMCNC works with customers from different furniture manufacturing sectors and production environments.
FAQ
What is a Cabinet Door Profile Laminating Machine?
A Cabinet Door Profile Laminating Machine is a specialized machine designed for laminating edge materials onto shaped cabinet door profiles such as J-pull and C-pull handles.
Standard edge banders are mainly designed for straight edges, while a Cabinet Door Profile Laminating Machine is intended for profile-based edge structures that require specialized molds and pressure systems.
Can the machine process J-pull cabinet doors?
Yes, the machine can be configured with molds suitable for J-pull profile applications.
Can the machine process C-pull cabinet doors?
Yes, profile molds can be designed according to C-pull profile dimensions and production requirements.
Can molds be customized?
Yes. Customized mold solutions can be developed based on customer drawings or samples.
What industries commonly use this machine?
Kitchen cabinet manufacturers, wardrobe producers, custom furniture factories, and interior panel manufacturers are among the typical users.
What materials can be processed?
Material compatibility depends on the specific production process, edge material type, and customer application requirements.
Is operator training required?
Basic machine operation training is recommended before production.
Can the machine be integrated into an existing production line?
Integration possibilities depend on the customer’s factory layout and workflow requirements.
How can I determine whether this machine is suitable for my profile design?
BCAMCNC can evaluate profile drawings, samples, or production requirements and recommend an appropriate solution.
