High-precision CNC beam saw machine for MDF, particle board, and plywood cutting. Automatic beam saw ideal for furniture, cabinet, and woodworking production.
Original price was: $17,890.00.$17,518.00Current price is: $17,518.00.
In today’s competitive woodworking and furniture manufacturing industry, efficiency, precision, and automation are essential for success. Traditional sawing methods are no longer sufficient to meet the growing demand for custom furniture, modular cabinets, and high-volume panel production. This is where modern CNC beam saw and automatic beam saw systems provide a clear advantage.
A beam saw machine is an advanced panel saw beam saw designed for straight-line, high-accuracy cutting of MDF, particle board, plywood, melamine, and other sheet materials. With the development of automated and computer-controlled models, manufacturers and panel workshops can now achieve higher productivity, greater consistency, and lower labor costs with a computer beam saw.
The BCM 1330A CNC automatic beam saw from BCAMCNC is designed for woodworking factories that need scalable, reliable, and cost-effective production equipment. Whether your business focuses on furniture, doors, wardrobes, or customized panel components, this woodworking beam saw machine ensures clean edges, optimized yield, and seamless integration with digital factory systems.
This beam saw machine for MDF / particle board and laminated boards ensures maximum cutting efficiency for furniture beam saw machine applications.
| Parameters | Standard Specifications BCM1330A |
| Main saw section | |
| Main shaft speed: 5600r / min | Groove saw blade diameter: 180mm |
| Rotating speed of grooving saw shaft: 6100r / min | Grooving saw shaft diameter: 30mm |
| Sawing speed: 0-120m / min | Maximum machining thickness: 80mm |
| Main grooving saw power: 15kw | Maximum processing width: 3200 mm |
| Feed motor power: 1KW | 2Feed guide: 45mm diameter round bar guide (Taiwan) |
| Diameter of main saw shaft: 60mm | The main electrical appliances are Siemens and OMRON |
| Main saw blade diameter: 355mm | Traveling of saw truck: 1.5kw |
| Blower power: 2.2kw | Side motor: servo 0.4KW Delta |
| X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
| Max. Rapid Travel Rate | 90m/min |
| CNC feeding table part | |
| Oil injection mode of guide rail Electric oiling | Driving mode Gear / rack and pinion reducer |
| Control mode Sanling PLC | Guiding mode Linear guideway Taiwan |
| Driving mode Servo motor 1kW Delta | Interface 10.2 Inch Touch Screen Sanling system |
| positioning accuracy Plus or minus 0.2mm | Thickness of clamping plate> 80mm |
| Speed of action 0-60m / min (adjustable) | Processing width 0-3200mm |
| Pressing mode Cylinder clamp pressing | Processing length 0-3200 mm |
| Complete machine | |
| weight 5200kg | Total installed power 21 kw |
| Overall appearance 5750*5500*1700mm | Table Height 850MM |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
These parameters ensure the automatic cutting beam saw wood system meets the requirements of both medium-sized workshops and large furniture factories.
BCM 1330A Automatic Beam Saw Machine Details

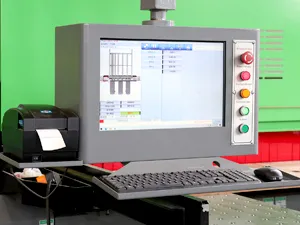

| The touch screen panel display interface issimple and easy to understand , and the contromethod is safe and reliable |  |
|
 |
 |
Loading system: Three loading system |
| Schneider Electronic spare parts (orginal France Schneider electronic components,best brand in the world) | |
 |
 |
|
Manipulator servo feeding clamp The grippers ensure the book is firmly secured. Their specific design and machine logic enable the full ejection of cut panels from the cutting line, making it easier for the operator to handle both panels and waste. |

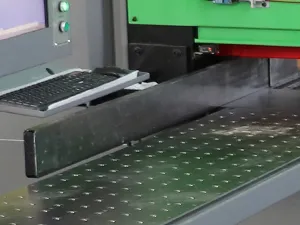

| The leftmost worktable of the machine is equipped with side baffle, which is made of hardened steel, It can reduce the wear and ensure the verticality of sawing to reach the standard | |
 |
 |
|
PNEUMATICFLOATING BEAD TABLE The sawing table is attached with a strong air cushion floating platform, which can reduce the friction between the workpiece and the table to the minimum during sawing, and also ensure that the veneer board will not damage the surface during sawin |
| MANIPULATOR High-performance pneumatic feeding clampsare driven and positioned by precision servos |
|
 |
 |
|

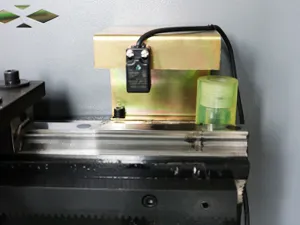

Adopt German guide rail, low noise design, high precision, smooth running and durable, long service life. |

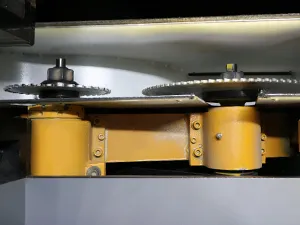

| servo motor saw carriage drive system stable movement automatic sawing position, max cutting speed up to 120m/min | |
 |
 |
|
Auto lubricating system, one touch can finish periodic maintenance easily. |
A beam saw, often referred to as a panel cutting beam saw machine, is used to size large sheets of wood-based materials with high precision. Unlike manual saws or small workshop machines, a CNC beam saw for woodworking combines servo drives, linear guides, and intelligent programming to cut multiple sheets at once with outstanding accuracy.
These machines are widely applied in:
Furniture factories (cabinetry, wardrobes, modular systems – best solved with a cabinet beam saw cutting machine)
Door and window production (solid wood, aluminum-wood composites – using an automatic beam saw for furniture boards)
Interior decoration companies (wall cladding, flooring, acoustic panels with a computer beam saw for plywood cutting)
Custom woodworking shops (batch panel cutting for MDF, particle board, laminated board using a woodworking beam saw for chipboard)
By automating the cutting process, modern woodworking solutions save both time and raw materials. The BCM 1330A CNC beam saw machine delivers ±0.1mm precision, speeds up to 120m/min, and integration with optimization or nesting software for maximum material efficiency.
Built on a stress-relieved welded structure, the BCM 1330A furniture beam saw machine ensures long-term stability and vibration resistance during heavy-duty cutting. It integrates an intuitive computer CNC beam saw control system, premium brand components, and optional IoT monitoring for Industry 4.0 smart production lines.
This horizontal beam saw machine is highly versatile, handling not only MDF, plywood, and particle board, but also laminated boards, acrylic sheets, melamine panels, and even aluminum composites. For woodworking enterprises looking to expand and modernize their capacity, the BCAMCNC beam saw machine is a robust and future-ready solution.
1. High-Stability Structure
The frame of the BCM 1330A automatic beam saw is welded with high-density technology and stress-relieved through annealing. This provides a durable structure capable of handling long-term heavy-duty cutting without deformation. The vibration-dampening design ensures smooth cutting results and prolongs the lifespan of key components.
Compared to traditional saw tables, this beam panel saw machine CNC minimizes structural stress and delivers consistent performance in demanding production environments.
2. User-Friendly Control System
The machine is equipped with an intuitive computer beam saw woodworking interface that simplifies operation. Operators can quickly learn to input cutting programs, simulate layouts, and optimize workflows.
The touchscreen panel is designed with clear menus, reducing training time and eliminating common human errors. Even operators with limited CNC knowledge can efficiently use this automatic beam saw for cabinet and wardrobe making.
3. Advanced Software Integration
One of the strongest features of the BCM 1330A CNC automatic computer beam saw is its compatibility with optimization and nesting software. It can connect to ERP systems, barcode scanners, and warehouse automation systems, enabling full integration into an Industry 4.0 environment.
For large furniture factories, the ability to optimize material usage reduces waste and improves cost-efficiency. Programs can be edited, simulated, and optimized directly on the computer beam saw, ensuring maximum output with minimal waste.
4. Premium Components for Precision
The BCM 1330A CNC beam saw uses globally recognized electrical and mechanical components. Siemens, Mitsubishi, and Omron supply key parts such as servo motors, drives, and electronic rulers. The result is cutting accuracy within ±0.1mm, stable feeding, and reliable long-term performance.
The beam saw cutting machine includes hardened steel guides, precision bearings, and a closed-loop positioning system. This guarantees precise repeatability, even in continuous 24/7 production environments.
5. IoT & Remote Monitoring (Optional)
For smart factories, the BCM 1330A beam saw machine (automatic) can be equipped with IoT connectivity. Operators and managers can remotely monitor machine performance, blade wear, cutting progress, and production data in real time.
Predictive maintenance ensures that issues are detected early, reducing downtime. This feature makes the BCAMCNC woodworking beam saw supplier a perfect fit for companies seeking to upgrade to smart manufacturing systems.
6. Multi-Material Adaptability
This woodworking automatic CNC beam saw panel saw is not limited to MDF or plywood. It can cut a wide variety of materials, including:
Laminated panels
Melamine boards (melamine beam saw)
Acrylic sheets
PVC
Aluminum composites
Solid wood (wood beam saw machine)
Adjustable cutting speeds and pressure ensure clean, chip-free edges regardless of the material. This flexibility makes the CNC beam saw for custom furniture production line an ideal solution for diverse woodworking applications.
7. Safety & Automation
The BCM 1330A CNC beam saw for sale is equipped with safety guards, light curtains, and emergency stops to protect operators. Automated feeding and ejection systems minimize manual handling, reducing labor costs while improving workplace safety.
The computer beam saw for plywood cutting provides a fully automated workflow: panel loading, clamping, cutting, and unloading are completed with minimal human intervention.
The BCM 1330A beam saw for wood is widely used in:
Furniture Manufacturing – MDF and plywood cutting for cabinets, wardrobes, modular furniture systems with cabinet beam saw cutting machine.
Door & Window Production – Laminated boards and aluminum-wood composites with beam saw machine for plywood / laminated board.
Interior Decoration – Decorative wall cladding and acoustic boards using wardrobe panel beam saw.
Custom Batch Orders – OEM beam saw factory production for MDF and chipboard.
Competitive beam saw price
Reliable automatic beam saw manufacturer in China
Best beam saw for woodworking with premium components
Trusted woodworking beam saw supplier reputation
Dedicated technical support & training
What is a CNC beam saw used for in woodworking?
How accurate is the BCM 1330A automatic beam saw?
What is the maximum cutting capacity of this woodworking beam saw?
Can the beam saw machine cut materials other than wood panels?
Is the computer CNC beam saw easy to operate?
How does the machine ensure material savings with optimization software?
What safety features are included in the beam saw cutting machine?
What is the beam saw price range?
Is the CNC beam saw for sale suitable for small workshops?
Can it be integrated into a custom furniture production line?
Does BCAMCNC beam saw machine come with after-sales support?
The BCM 1330A beam saw cutting machine provides unmatched precision, automation, and reliability for panel cutting in furniture and cabinetry production. Whether you are producing cabinets, wardrobes, or custom furniture panels, this high-performance woodworking automatic CNC beam saw delivers consistent results while optimizing material usage and labor efficiency.
Contact BCAMCNC, a leading automatic beam saw manufacturer in China, to request a quote, compare beam saw price, or order the best CNC beam saw for woodworking with global support.
