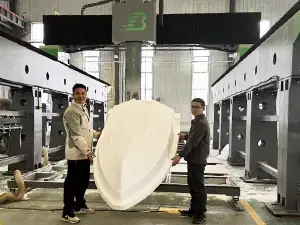

5 Axis CNC Router with 360° Rotary HQD Spindle for High Precision Yacht & Boat Model Fabrication

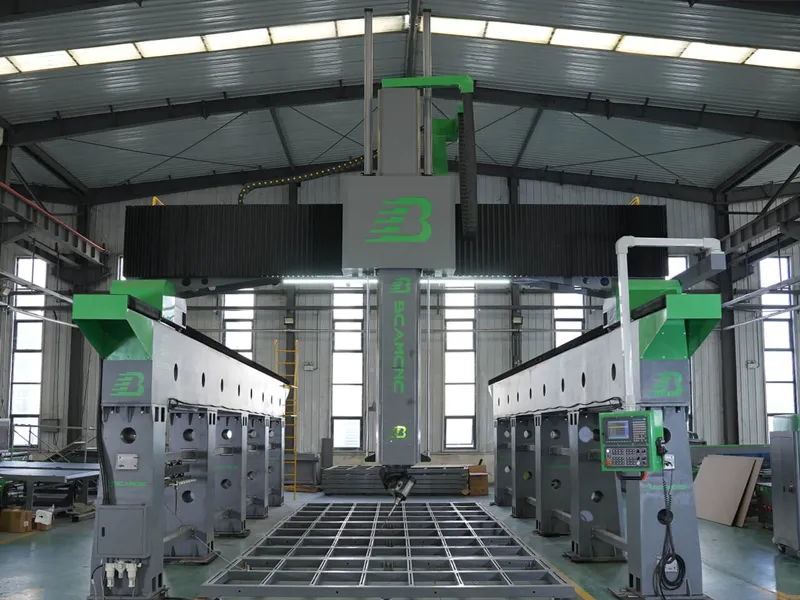

Ultra-Large Format 2550 5 Axis CNC Wood Router Machine for Mold
Last Updated: 2024-10-16
Ultra-large 5 axis CNC wood router for architectural woodwork and large slabs. Enables deep cutting without repositioning. Ideal for large-scale fabrication.
Ultra-large format BCM2550 5 Axis CNC Wood Router Foam Mold Marking 3D Wooden Foam Machine Advantages

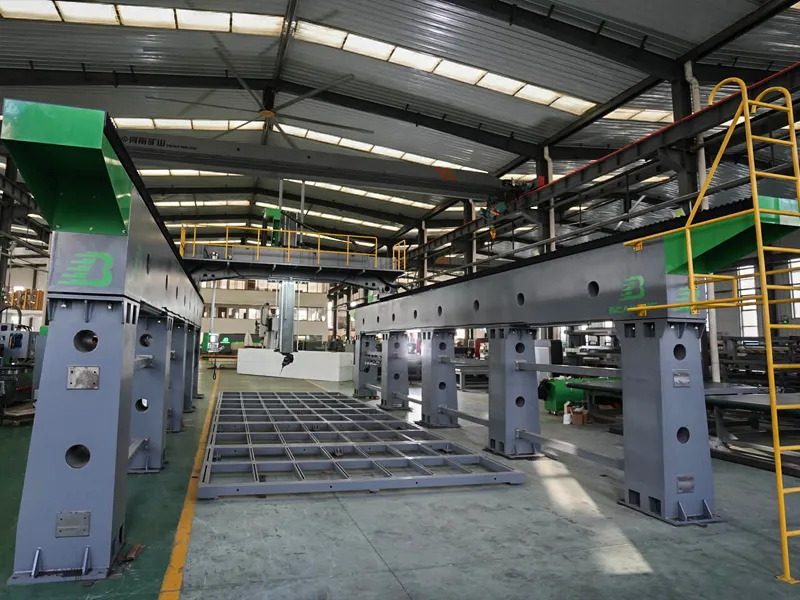

1. Robust Machine Structure & Design
Welded Frame Construction: Full steel-welded bed with FEA-optimized design and secondary annealing for stress relief, ensuring rigidity and stability for 5 axis CNC wood routers and CNC woodworking machines.
Heavy-Duty Build: Bed and column thickness ≥12mm supports large-format applications such as shipbuilding and aerospace molds.
Standard Components: Steel gantry, welded iron columns, and TBI square rails (40mm/35mm) with dust-proof wings on Y/Z axes for high-precision CNC wood cutting machines.
2. High-Performance Motion System
Drive Mechanism: X/Y-axis rack-and-pinion transmission + Z-axis ball screw for precise and durable motion in 5 axis CNC wood routers and CNC furniture routers.
Yaskawa Servo Motors & Drives (with Brakes): X/Z-axis 4.4kW (DL-40200) / 2.9kW (DL-2550/3020/40100), short settling time, auto-tuning, CE/UL-certified reliability.
Hiteco AC Rotary Axes + Spindle: 22kW (DL-40200) / 13.5kW (DL-2550/3020/40100) spindle with Delta MS inverter and brake resistor for high-speed, stable CNC wood router machining.
3. Advanced 5 Axis Technology
5 Axis Dual Swivel Head (90° Vertical): High-speed spindle with RTCP function ensures smooth multi-axis cutting for complex geometries in CNC wood cutting and 5 axis CNC wood router projects.
Automatic Tool Changing: Supports high-precision, multi-process workflows with minimal manual intervention.
Optional 3D Probe: Infrared-triggered measurement with AC-axis angle compensation for in-machine detection and alignment.
4. Intelligent Control System
Syntec 610MA-E5 CNC System: Integrated industrial PC with WindowsCE interface for real-time 3D simulation, fault diagnostics, and tool path visualization.
Software Compatibility: Supports ISO G-code, MasterCAM, and other CAD/CAM software for CNC woodworking machines and CNC furniture routers.
5. Productivity Enhancements
8-Station Tool Magazine (Disc/Linear, Customizable): Reduces manual setup and boosts efficiency for 5 axis CNC wood routers and CNC wood cutting machines.
Large Work Envelope:
DL-40200: 4000×20000×3000mm (ideal for ship molds up to 4×20×3.1m)
DL-2550/3020/40100: Z-axis height 1800mm
6. Safety & Reliability
Power & Maintenance: Dry-type transformer and separated circuits for easy maintenance.
Certified Components: CE/UL-certified servo systems and electrical components ensure reliability for long-term CNC wood router operations.
Target Applications
Shipbuilding & Aerospace molds
Foam, wood, aluminum, and composite material machining
Large-format, heavy-duty cutting with full 5 axis versatility for CNC furniture routers and 5 axis CNC wood routers
Ultra-large format BCM2550 3D Cutting Fiber Boat Die Mold 3D And Milling 5 Axis CNC Wood Router Specifications
Parameters
Standard Specifications BCM2550DL-5 Axis
X,Y,Z Working Area
2500*5000*1800mm
Spindle Power
13.5kw Italy HITECO air cooling spindle
X,Y,Z Traveling Positioning Accuracy
0.36mm(Bed table is less than 2M x 5M)
Repeat positioning accuracy
±0.08mm/1000mm
Table Surface
Vacuum table+T-solt table
X,Y,Z Rail and Trasmission
X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate
40m/min
Max. Working Speed
15m/min(Calculated based on material 15 meters of foam)

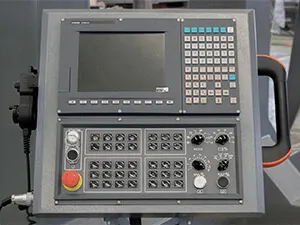

The control system of BCM-5 axis adopts the more advanced Taiwan Syntec system 610MA, which is
widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and Network, greatly increasing the intelligence of the device

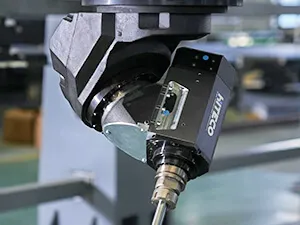

Italian HITEC 13.5KW Air
Electro spindle with 8-position
Automatic Tool Changer(ISO30).
Feed Rate:
X Axis 3150ipm(80mpm)
Y Axis 3150ipm(80mpm)
Z Axis 735ipm(18.7mpm)
Y Axis 3150ipm(80mpm)
A and C Axes 82.5 degree/sec
Acc/Dec 205in/sec2
Axis Travel
BCM1325 5 AXIS 1300*2500*800MM
A Axis ±120°
C Axis ±213°

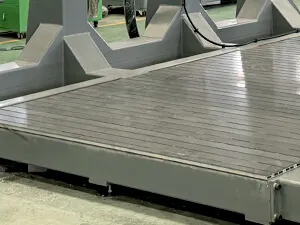

Cast Iron table with highest accuracy and durable quality , it will not change during working Aviation aluminum vacuum countertop/cast iron countertop are available for optional ,Support customization of special tooling fixtures according to processed products

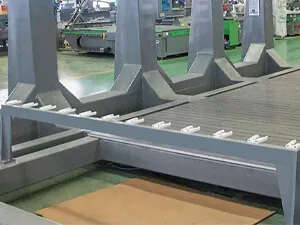

Linear tool holder
Straight-line holder for fast automatic tool changing, enhancing efficiency in multi-process 5 axis CNC wood cutting and foam cutting.

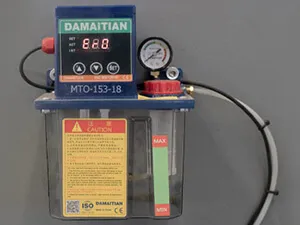

Auto lubricating system, one touch can finish periodic maintenance easily

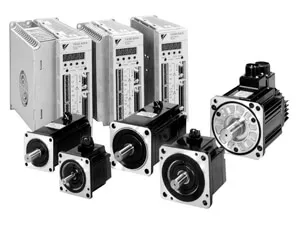

World-class servo motor and driving system ensures machine to run with fast speed and low noise.

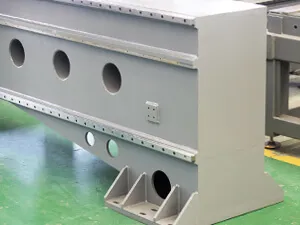

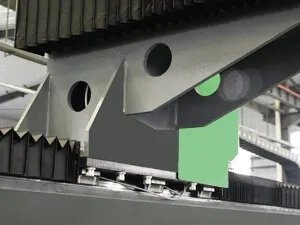

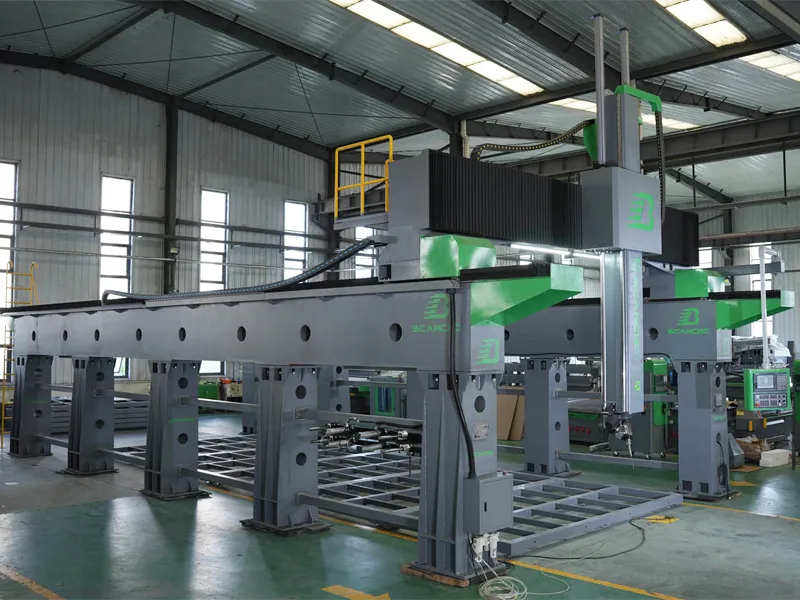

Machine body
Heavy-duty welded steel frame, stress-relieved for maximum rigidity, ensuring stability and precision during large-format CNC woodworking and mold machining.
Dust cover for X, Y Axis
Protective dust-proof covers on X and Y axes prevent debris accumulation, extend component life, and maintain long-term machining accuracy for 3D wood cutting and foam sculpture cutting.

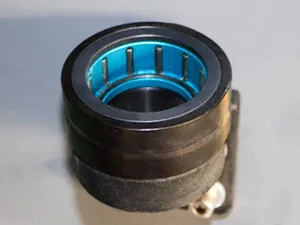

Tool Lock
Automatic spindle tool lock system provides secure clamping, reducing vibration and ensuring safety during high-speed CNC router operations.
Large 2550 5 Axis 3D EPS Foam Aluminum Mould Sculpture Making Cutting CNC Router Application Solution
1. Aerospace Industry
Aircraft Engine Blades / Turbine Discs: 5 axis simultaneous CNC machining for complex airfoil geometries. High-speed milling of nickel-based alloys (Inconel 718) with adaptive toolpath control.
Wing Structures / Spacecraft Components: Large-format carbon fiber composite trimming (up to 10m+ workpieces). Precision drilling for lightweight honeycomb aerospace structures.
2. Automotive Industry
Engine Blocks / Gearboxes: Deep-cavity machining for aluminum castings (e.g., Tesla-style mega-castings). Hardened steel crankshaft roughing with heavy-duty 15kW+ CNC spindles.
EV Battery Boxes / Interiors: One-pass machining of aluminum battery trays (IP67 sealing). 3D texture on dashboards (grain / wood-effect) using CNC cutting technology.
3. Mold & Die Manufacturing
Injection & Die-Casting Molds: Ultra-fine surface finishes (Ra 0.2μm) via diamond-tool polishing. Undercut machining with tilting head (±120° rotary axis).
Prototyping (Wood / Foam / Plastic): Rapid 3D model fabrication for industrial design and wind tunnel prototypes.
4. Medical Equipment Artificial Joints / Dental Implants: Biocompatible titanium machining with mirror-finish requirements.
Micro-Milling Surgical Tools: Precision CNC machining with 0.1mm tool diameter.
5. Energy & Heavy Industry
Gas Turbine Blades / Nuclear Valves: Monolithic part machining with no repositioning for 5-sided access.
Anti-Vibration Algorithms: Ensure accuracy in interrupted cuts on turbine runners.
7. Woodworking & Furniture
Artistic 3D Cuttings / Custom Furniture: Relief cutting up to 4m × 2m work area.
Multi-Material Processing: MDF, solid wood, acrylics, and EPS foam cutting for furniture and decorative panels.

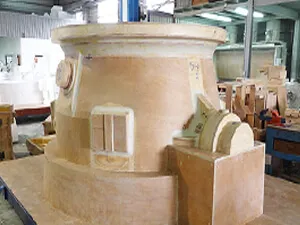

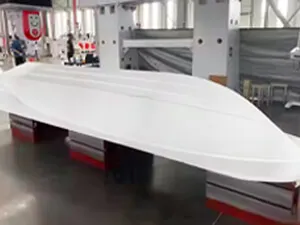

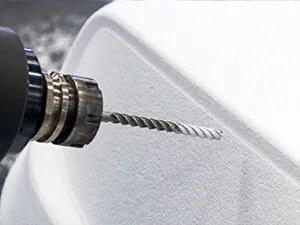

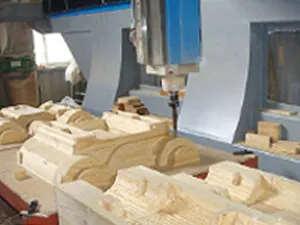

Ultra-large format 2550 3D Sculpture CNC Cutting 5 Axis Machine Sample Display
Service & Support for BCAMCNC 5 Axis CNC Wood Router Machine for 3D Design Car Mould
At BCAMCNC, we are committed to expanding brand awareness and strengthening our global reputation by upholding the principles of “pursuing excellence in quality and customer satisfaction”. Our standards—superior product quality, exceptional service, and strict corporate management—ensure a long-term, trustworthy partnership with every client in industries such as automotive mold making, woodworking, EPS foam, and aluminum machining.
1. Quality Assurance
Transparent Manufacturing Process: Customers are welcome to inspect the entire production process on-site or via live video streaming, ensuring full visibility into our 5 axis CNC wood router machine production. Test runs are also available before shipment.
Comprehensive Quality Records: Detailed inspection reports and production data for each CNC wood cutting or car mold router are available upon request.
Strict Packaging Standards: All machines undergo rigorous checks before being securely packaged and shipped worldwide.
2. Competitive & Value-Driven Pricing
Affordable Without Compromise: BCAMCNC provides highly competitive pricing without sacrificing technical performance or replacing components with inferior substitutes.
Premium Materials: Long-term stability and durability are guaranteed by sourcing raw materials and CNC parts exclusively from globally recognized manufacturers.
3. Efficient & Reliable Delivery
Complete Documentation: Every shipment includes:
Step-by-step installation guides & setup videos
Comprehensive CNC router maintenance & repair manual
List of wear-resistant parts & optional accessories
Flexible Lead Times: Standard delivery takes 15–30 days. Expedited production is available for urgent automotive mold and woodworking CNC wood router projects.
