5 Axis CNC Router for Boat Mold Making and Yacht Tooling
Large Format Five Axis Machining for Hull Plugs, Deck Plugs and Marine Patterns
Last Updated: 2025-03-25
Large Working Envelope · Simultaneous Five Axis Machining · RTCP · Automatic Tool Changing
Machine large hull plugs, deck plugs, and marine patterns in foam, tooling board, and suitable cured resin. The BCAMCNC DLP Series combines simultaneous five-axis machining, RTCP, and automatic tool changing for curved surfaces and multi-angle tool access.
Working dimensions and equipment are selected around your mold geometry, material, and machining process.
SALE
Brand
- BCAMCNC
Model
- BCM40100DLP-5 Axis
Table Size
- 4m*10m
$149,000.00Original price was: $149,000.00.$145,000.00Current price is: $145,000.00.
Supply – 360 Units in Stock Available for Sale Every Month
Quality – CE Certified for Safety & Reliability
Warranty – Three-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Shape large mold blanks from roughing through finishing. Machine the curved hull surfaces and profiles that establish the geometry for subsequent mold production.
Deck Plugs and Cabin Patterns
Machine deck forms, cabin patterns, and raised features with tool access from different angles.
Sectional Patterns and Mold Tooling
Produce separate tooling sections for sectional construction. Suitable tooling materials can also be machined directly into molds, with finishing requirements determined by the molding process.
Boat Mold Machining in Action
Explore DLP Series machining examples for marine patterns and mold tooling.

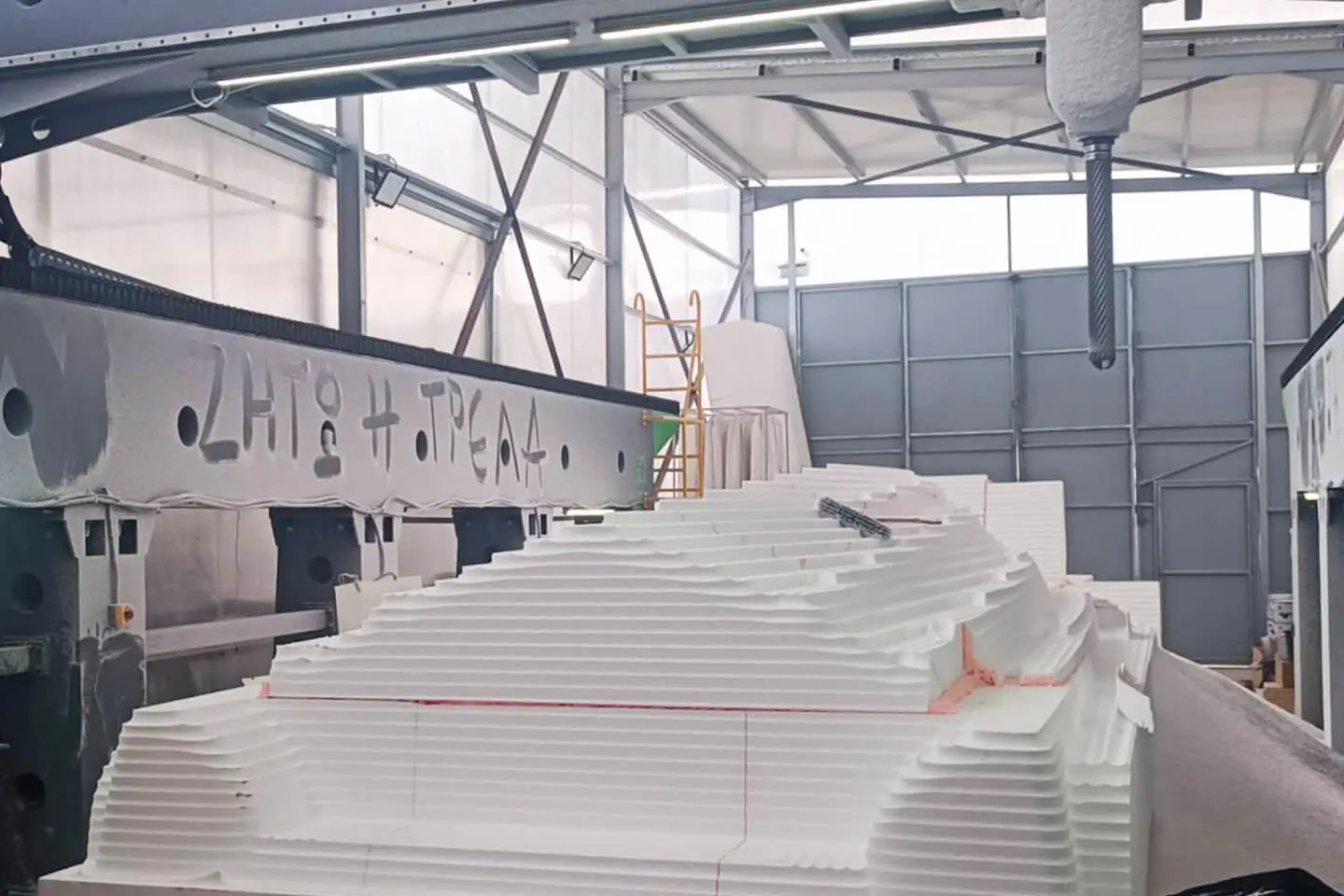

Greece Boat Mold Manufacturing Project
BCAMCNC supplied a BCM40100DLP large format 5 axis CNC router for a boat mold manufacturing project in Greece. Onsite support included installation, commissioning, and operator training.
Why Use Five Axis Machining for Large Boat Tooling?
Reach Curved and Inclined Surfaces
Hull and deck geometry changes across the workpiece. Five-axis movement adjusts the tool approach to reach inclined walls, curved profiles, and surface transitions.
Reduce Repeated Clamping and Alignment
Where the geometry permits, accessible surfaces can be machined within one setup, reducing repositioning and alignment between separate operations.
Change Tools Within the Program
Automatic tool changing connects roughing, finishing, and other compatible operations. RTCP compensates for tool-position changes as the rotary axes move.
Selected for the workpiece, fixtures, and required tool access
This proposed equipment package is subject to technical confirmation for your application. Final specifications, included equipment, and optional accessories are listed in the quotation.
Materials for Boat Plugs, Patterns and Mold Tooling
Material
Typical Use
EPS and PU foam
Hull forms, large patterns, and plug cores
Tooling board
Master models, detailed patterns, and tooling surfaces
Suitable cured resin and tooling paste
Machining model surfaces and tooling layers
Suitable composite tooling
Application-specific milling, drilling, or trimming
Cutting tools, workholding, and dust collection must suit the material. For formed hull components and other composite parts, see our composite machining applications.
Select the Machine Around Your Mold and Workshop
The required working space includes the mold blank, supports, fixtures, cutter length, and spindle-head movement.
Workpiece dimensions alone do not define the required machine travel or clearance.
Start with three project details:
Material: foam, tooling board, cured resin, or another specified tooling material.
Maximum dimensions: length, width, and height, including the supporting structure.
Machining approach: full-size or sectional production and the required cutting operations.
These details help us recommend working travel, tool access, loading arrangements, and equipment options.
Installation, Training and Technical Support
BCAMCNC provides installation planning, commissioning, operator training, and technical support according to the agreed project scope.
Planning covers machine layout, electrical supply, loading access, and supporting equipment. Training can include machine operation, setup, routine maintenance, and troubleshooting.
Common Questions About CNC Boat Mold Making
Can an entire hull plug be machined in one setup?
This depends on its dimensions, the machine envelope, fixtures, and tool access. Some projects require sectional machining or repositioning.
Can the machine produce a mold directly rather than a plug?
Suitable mold tooling materials can be machined directly. Material selection depends on the mold design and intended molding process.
Will the machined surface be ready for mold production?
The required finishing depends on the tooling material and molding process. Sealing, coating, sanding, or polishing may be needed after machining to achieve the specified surface condition.
Can I use my existing CAD/CAM software?
It must support the required five-axis toolpaths and a suitable postprocessor for the selected machine and controller.
Can you recommend a machine from photographs?
Photographs, approximate dimensions, and material details are enough to start. CAD geometry helps refine the configuration and assess difficult-to-reach features.
Get a Configuration and Quote for Your Boat Mold Project
Send your material, maximum mold dimensions, and required operations. Tell us whether you plan full-size or sectional machining. BCAMCNC will recommend a DLP Series configuration with proposed specifications and pricing.
