High-efficiency four-process multi-head CNC router designed for woodworking, furniture production, and multi-tool cutting. Stable, accurate, and cost-effective for growing workshops.
Original price was: $7,980.00.$7,456.80Current price is: $7,456.80.

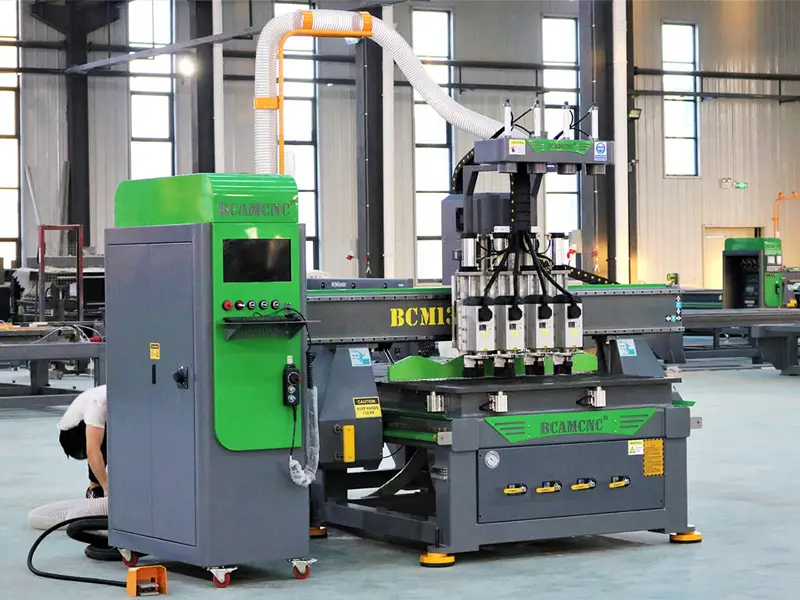

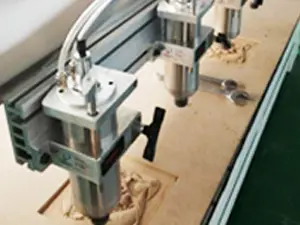

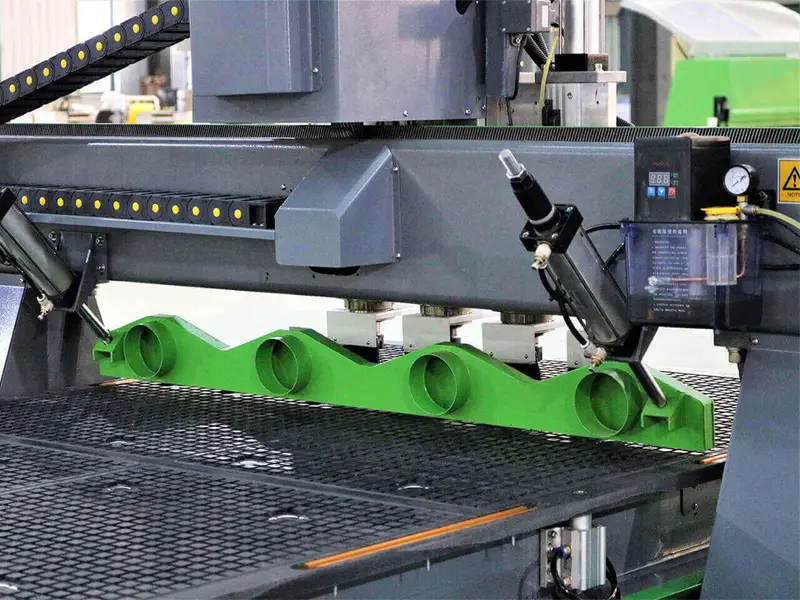

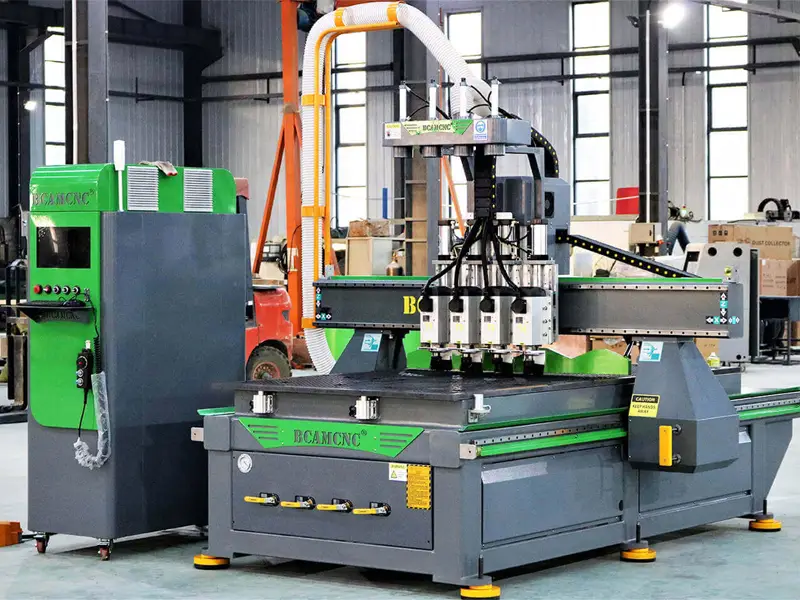

1. Four Spindles for Multiple Tools
This multi-head CNC router is equipped with four independent spindles, allowing you to set four different tools at once. It works like a 4 process CNC router or 4 step CNC router, switching spindles automatically during cutting, carving, drilling, or shaping. This structure offers the speed and convenience commonly seen in a Four Process ATC multi-head CNC Router.
2. Cost-Effective Alternative to ATC Machines
For buyers with limited budgets, this machine provides ATC-level workflow without the high investment. As a Multi Process CNC Router and Four Step CNC Router, it helps complete multi-stage woodworking tasks efficiently, making it a smart entry-level solution for growing workshops.
3. One Inverter, Stable Power
The four spindles operate under a single inverter equal to or higher than spindle power, ensuring consistent torque and smooth switching. This makes it a reliable 4 Process Spindle CNC Router and suits users needing stable output for long-term production.
4. High Precision for Complex Work
The multi-head CNC router maintains accurate tool positioning and clean cutting quality. Whether processing wood, MDF, acrylic, or plastic boards, the machine performs with the precision expected from a Four Process 3 Axis Multi Heads Wood CNC Router or a 3 Axis CNC Router with 4 Spindle.
5. Easy Operation & Low Maintenance
Designed with a simple setup and durable structure, this multi-head CNC router is friendly for beginners and small to medium workshops. As a Four Processes Wood CNC Router ATC Vacuum Table, it reduces manual work, lowers maintenance, and supports smooth daily production.
| Parameters | Standard Specifications BCM1325S*4 |
|
X,Y,Z Working Area
|
1300*2500*200mm|4*8ft |
|
Optional Working Area
|
1300*1300*200mm|4*4ft
|
|
1500*3000*200mm|5*10ft
|
|
|
2000*6000*200mm|6*20ft
|
|
|
Spindle Power
|
3.0kw water cooling spindle
|
|
X,Y,Z Traveling Positioning Accuracy
|
0.01/2000mm
|
|
Table Surface
|
Vacuum table+T-solt table
|
|
Max. Rapid Travel Rate
|
40m/min
|
|
Max. Working Speed
|
30m/min
|
|
Cutting thickness
|
According materials
|
|
Drive Motors
|
4 sets High Torque stepper motor and drivers
|
|
Working Voltage
|
AC220v0r380v/50HZ/3 phase,220v/1phase/50hz
|
|
Command Language
|
G Code
|
|
Operating System
|

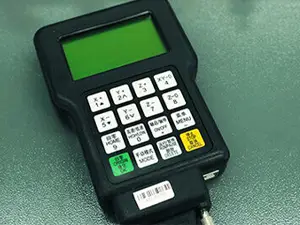

Richauto A11 DSP control system
|
|
Interface
|
USB
|
|
Software Compatibility
|
Option:Type3/Ucancam/Alphacam/Solidworks,etc.
|
|
Running Environment
|
Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
 |
 |
Multi-head automatic intelligent tool change, high efficiency, high precision, slotting and emptying, cutting and blanking, multi-function operation. |
| 2D and 3D processing with router and knife tools, Compatible with standard G-Code based 99% CAD/CAM software programs. |  |
 |
 |
|
Has the unique safety protection system of BCAM products, and provides external emergency stop function for equipment users. This function can effectively protect the personal safety of the equipment users, meet the European safety CE standards. |
| 2D and 3D processing with router and knife tools, Compatible with standard G-Code based 99% CAD/CAM software programs. | |
 |
 |
|

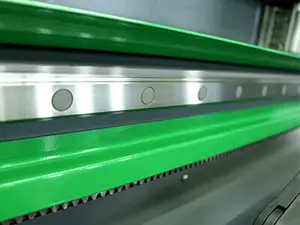

TaiWan HIWIN Spec Precision Linear Guide Rail for smooth motion and high accuracy. |
1.Advertising & Sign Making
The multi-head CNC router is widely used in the advertising industry for making signboards, logo cutting, acrylic shaping, and plastic forming. It is ideal for producing advertising letters, displays, and decorative products with high precision. As a 4 process multi-head CNC router, it supports multi-tool engraving and cutting in one continuous job.
2.Mold Processing Industry
This machine performs well in mold manufacturing, especially for non-metallic and soft metal applications. It can engrave copper, aluminum, resin, artificial marble, foam, PVC sheets, and wood molds. The strong structure and stable spindle switching make the 4 process spindle CNC router suitable for detailed mold shaping and 3D engraving tasks.
3.Crafts & Art Decoration
The router is also used for creating large relief carvings, shadow carvings, and fine craft products. Workshops in the craft industry choose this multi-head woodworking CNC router for its ability to handle multi-step engraving with higher efficiency and consistent accuracy.

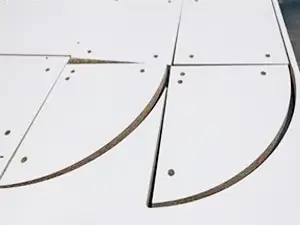

4.Woodworking & Furniture Production

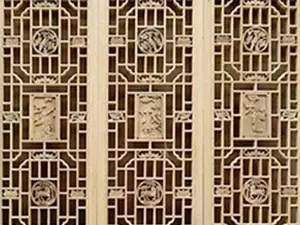

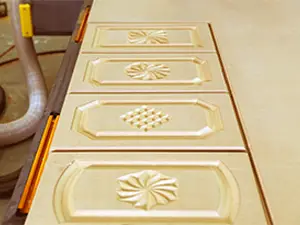

In the woodworking field, the machine handles a wide range of furniture and décor work. It can process 3D wave panels, cabinet doors, wardrobe doors, solid wood doors, screens, craft windows, and decorative components. It also supports auxiliary processing for game cabinets, shoe cabinets, mahjong tables, computer desks, and other custom furniture.
The 4 process multi-head CNC router structure allows users to complete cutting, carving, drilling, and shaping with four preset tools, making it ideal for long-term furniture manufacturing.
| Feature | Four-Process CNC Router/ Multi-Head CNC Router | ATC CNC Router |
|---|---|---|
| Tool Changing Method | 4 spindles switch automatically | Automatic tool changer with tool magazine |
| Number of Tools | 4 fixed tools | 8–20+ tools depending on magazine |
| Processing Flexibility | Suitable for jobs using limited tools | Highly flexible for complex, multi-tool jobs |
| Speed of Tool Change | Very fast (spindle switching) | Fast but depends on magazine design |
| Best for | Cabinet doors, panel furniture, basic routing | Complex machining, diverse materials, custom jobs |
| Work Efficiency | High for simple repetitive tasks | High for multi-step, precise tasks |
| Cutting Accuracy | Good | Higher precision with stable ATC system |
| Machine Cost | Lower | Higher investment |
| Maintenance | Simple, low cost | More complex, higher maintenance cost |
| Typical Users | Small/medium workshops | Professional factories, mass production lines |
The four-process Multi-Head CNC router is ideal for manufacturers who need high efficiency and stable performance with multiple tooling requirements but don’t need a full ATC system. It is especially suitable for:
BCAMCNC is known for delivering reliable, high-quality CNC routers that meet international standards and real production demands. With over 15 years of industry experience, we design every multi-head CNC router with a strong structure, stable control system, and industrial-grade components to ensure long-term accuracy and durability. All machines are manufactured under strict quality management and come with CE certification and ISO9001 quality system approval, giving customers confidence in safety and performance.
Our products are recognized by woodworking factories, furniture manufacturers, advertising processors, and mold makers in more than 80 countries. Customers choose BCAMCNC not only for the machine quality but also for our professional service, fast delivery, and reliable technical support. Machine includes a 3-year warranty, detailed training, and responsive after-sales service to ensure smooth operation from installation to daily production.
As a one-stop CNC solution provider, BCAMCNC offers complete production equipment—from multi-head routers and ATC routers to edge banders, panel saws, and laser systems—allowing you to upgrade your entire workshop from a single trusted supplier. With strong R&D capability, efficient production, and customer-centered service, BCAMCNC remains the professional choice for businesses seeking stable performance, fast turnaround, and long-lasting value.
1. What is a four-process CNC router?
A four-process CNC router uses four independent spindles that switch automatically. Each spindle holds a different tool, allowing the machine to complete cutting, drilling, engraving, and slotting in one setup without manual tool changes.
2. What advantages does it offer compared to a standard CNC router?
It provides faster tool switching, higher efficiency, and reduced downtime. It is ideal for workshops that use 3–4 tools frequently but do not need the cost of a full ATC system.
3. What materials can the four-process CNC router cut?
The machine can process:
4. Is the machine suitable for panel furniture production?
Yes. It supports cabinet cutting, grooving, drilling, door engraving, and other furniture processes. It is widely used by panel furniture factories and cabinet door manufacturers.
5. What industries commonly use this machine?
6. What is the difference between a four-process machine and an ATC CNC router?
A four-process router offers four fixed tools with fast switching, while an ATC router supports more tool choices and fully automatic tool changing. Four-process machines are more cost-effective for workshops using only a few tools.
7. How difficult is it to operate the machine?
It is easy to learn. The machine comes with a user-friendly control system, complete training videos, and remote support from BCAMCNC.
8. Does the machine support customized sizes or configurations?
Yes. BCAMCNC offers custom table sizes, spindle options, vacuum systems, and dust collection upgrades based on your production needs.
9. What is the maintenance requirement?
Only basic maintenance is required—regular lubrication, dust cleaning, and checking the vacuum system and spindle bearings. BCAMCNC provides a full maintenance guide.
10. What is the warranty and after-sales support?
All BCAMCNC four-process multi-head CNC routers include:
