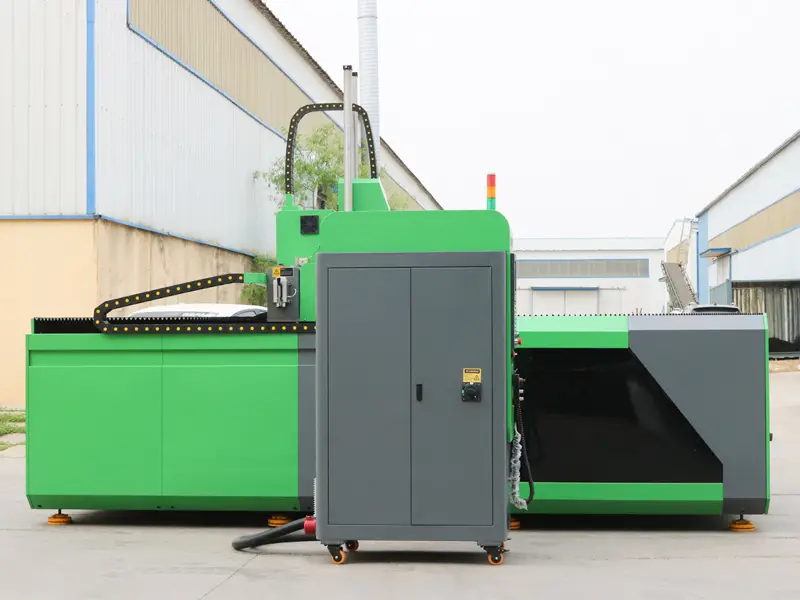

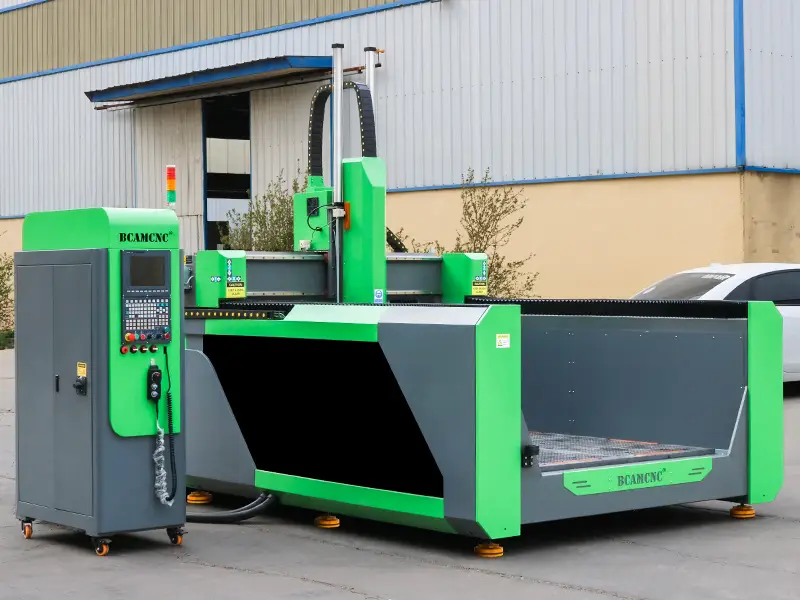

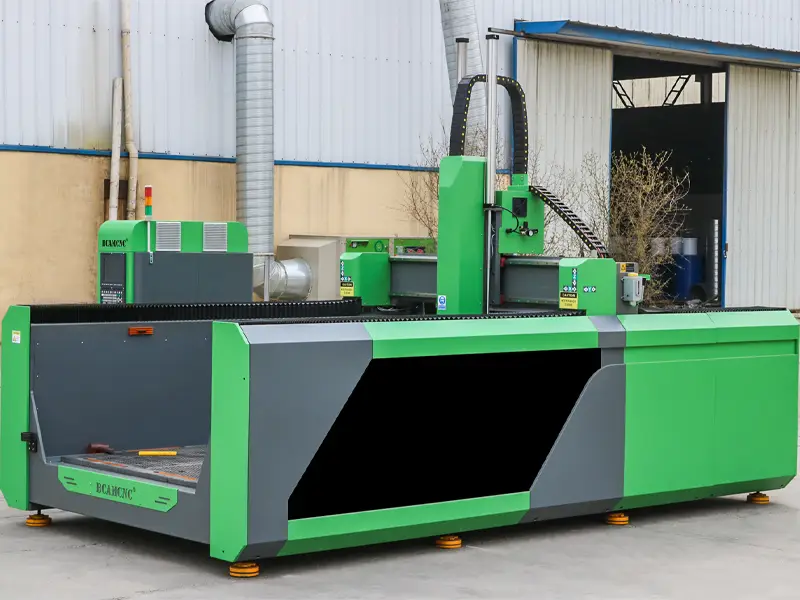

4-Axis CNC Router with Down-Sunk Table

Advantages of the Down-Sunk Table 4 Axis CNC Router

The BCAM down-sunk table 4 axis CNC router is engineered for manufacturers who need more flexibility, higher accuracy, and stable performance for 3D work. Its recessed table design provides extra vertical space, making it ideal for large foam blocks, tall molds, multi-layer panels, and deep cavity machining without spindle interference. With a ±90° swing spindle and industrial-grade components, it delivers smooth motion, clean edges, and reliable results in continuous production.

Here are the key advantages that make this model a powerful and cost-effective 4-axis solution for modern workshops:

1. Down-Sunk Table for Deeper and More Stable Machining

The recessed table design provides a lower working position, giving the spindle more clearance to process:

• Tall molds and thick foam blocks
• Deep cavities and long toolpaths
• Large 3D sculptures and curved surfaces
• Multi-angle cuts without collision

The lowered center of mass also reduces vibration, ensuring strong stability during high-speed machining.

2. True ±90° 4-Axis Rotation for Complex 3D Jobs

Equipped with an Italian HSD spindle that rotates ±90°, this 4 axis CNC router performs advanced tasks that standard 3-axis machines cannot achieve:

• Angle milling and edge trimming
• Side drilling and horizontal slotting
• 3D contouring and curved surface finishing
• Undercut machining and multi-side shaping

This makes it a perfect solution for foam mold manufacturing, furniture components, artistic sculptures, industrial models, and prototype production.

3. 10mm Heavy-Duty Steel Frame for Long-Term Accuracy

The machine body is constructed from thick, welded steel that has been stress-relieved for maximum rigidity.
Benefits include:

• Zero deformation over years of operation
• Stable performance during deep cutting
• Reduced vibration at high speed
• Ideal support for large-format materials

It is built to run continuously in professional workshop environments.

4. More Affordable Than a 5-Axis Machine, but Powerful Enough for 3D Work

The down-sunk table design and ±90° spindle provide many of the functions of a 5-axis CNC at a fraction of the cost.
You get:

• Multi-direction machining
• Complex 3D shaping
• Deep mold processing
• High-precision carving

This makes the machine a smart choice for businesses that need 3D capability without the heavy investment of a full 5-axis system.

5. Industrial Transmission for High Speed and Smooth Motion

To ensure fast and stable production, the router uses:

• Helical rack and pinion drives on X and Y
• Taiwan TBI ball screw on Z
• 25mm Hiwin linear bearings with four-row blocks

These components provide:

• Rapid travel up to 80m/min
• Working speed up to 60m/min
• Clean edges and smooth curves
• Low noise and long service life

Perfect for wood, MDF, acrylic, foam, composite panels, and more.

6. Automatic Tool Changer for Continuous Workflow

With an 8-position linear ATC (expandable), the machine automatically switches tools during machining.
Advantages include:

• Faster production cycles
• No manual tool changes
• Accurate tool-length compensation
• Efficient multi-process cutting

Ideal for cabinet manufacturing, mold making, 3D carving, and large-batch production.

7. Syntec Control + Yaskawa Servo System for Reliable Performance

This router is powered by:

• Syntec 60WE professional CNC controller
• Japan Yaskawa servo motors with Shimpo reducers

You get:

• Smooth motion
• Fast acceleration
• Excellent repeatability
• Stable multi-layer 3D machining

It maintains high precision even during long, complex jobs.

8. Hybrid Vacuum & T-Slot Table for Flexible Workholding

The combination of vacuum suction and T-slot clamping allows you to secure both sheet materials and irregular workpieces.
Benefits include:

• Strong hold for large boards
• Easy fixture installation
• More stable positioning during angled cutting
• Higher machining accuracy

Down-Sunk Table 4 Axis CNC Router Main Configuration

• Working area: 1300*2500*400mm
• CE standard
• Italian HSD 9.5KW(12HP) Electro spindle ± 90° with 8-position Automatic Tool Changer(ISO30)
• 10mm Heavy duty body
• Active safety system
• Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
• 25mm Heavy-duty Hiwin HG Series linear bearing
• Vacuum table+T-solts
• Taiwan Syntec 60WE
• Japan Yaskawa 850w servo motor and drivers system with shimpo reducer
• Delta brand VFD-B variable frenquency drive
• 8 Position Automatic Tool Changer (options: more position)
• Tool Cone Holder-for east bit changing
• Solid State limit switches

Down-Sunk Table 4 Axis CNC Router Specifications

Down-Sunk Table 4 Axis CNC Router Details

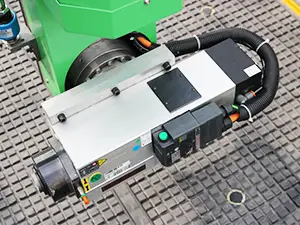

		Italian HSD 9.5KW(12HP) Electrospindle ±90° with 8-position Automatic Tool Changer(ISO30)
Tools sensor High accuracy, long service time, steady movement and good starting performance
		High speed slider brand is Hiwin, it has 4 rows of steel balls inside , modle is new type CG-25 with dust-proof function, it has longer life compare with 2 rows steel balls slider. 4 rows can keep machine working speed very fast, keep stable and high torque.
Syntec 60WE controller—enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.

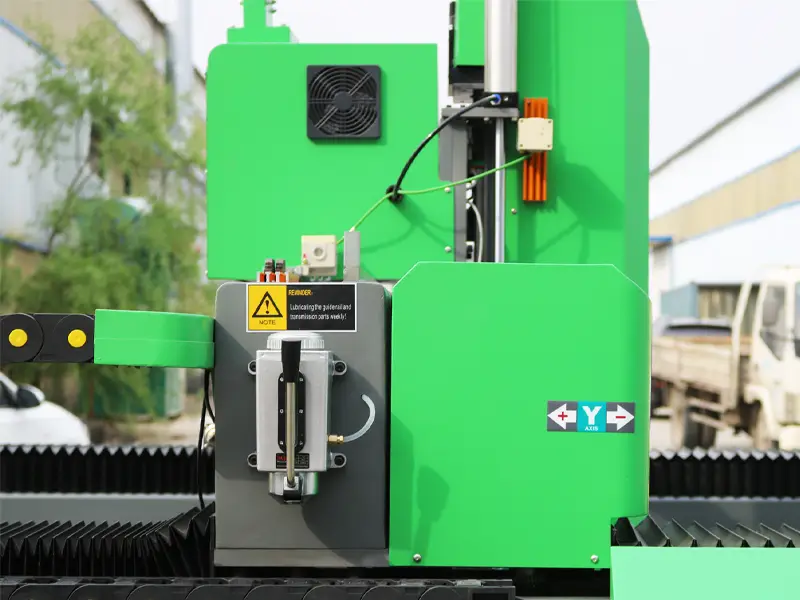

		Auto lubricating system, one touch can finish periodic maintenance easily
world-class Japan Yaskawa servo motor and driving system ensures machine to run with fast speed and low noise
		Unique auto tool changer system can change tools alternatively, tool sensor to compensate the tolerance of tool length

Applications of the Down-Sunk Table 4 Axis CNC Router

• Works with foam, wood, MDF, plastics, resin, and composite materials.
• Ideal for deep cutting, multi-angle machining, and large 3D contouring.
• Perfect for foam mold making, prototype development, and model shaping.
• Used for furniture parts, curved components, and complex wood carving.
• Suitable for artistic sculptures, themed decorations, and creative installations.
• Widely applied in advertising displays, 3D signage, and exhibition structures.

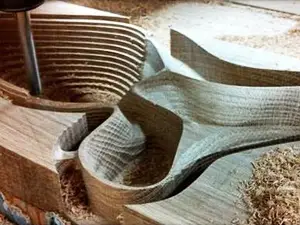

Sample display of BCAM Down-Sunk Table 4 Axis CNC Router

4-Axis CNC Router vs. Down-Sunk Table 4-Axis CNC Router

Customer Case Display

Our down-sunk table 4 axis CNC router is already used by customers in woodworking, foam modeling, automotive prototyping, and sign-making industries. Below are selected customer cases showing how the machine improves daily production:

• Automotive foam mold factory – Achieved 45% faster cycle time on large car bumper models with smooth ±90° angle machining.
• Wood furniture manufacturer – Completed deep-slot chair molds in one setup, reducing labor and re-clamping errors.
• Sculpture & art studio – Produced 1.8m large 3D statues with clean surfaces and precise contours.
• Advertising company – Improved productivity for oversized 3D signage and exhibition structures.

These cases demonstrate how the recessed table design helps customers handle larger, deeper, and more complex projects with greater stability and accuracy.

Compatible Materials

The BCAM down-sunk table 4 axis CNC router supports a wide variety of materials used across different manufacturing fields:

• Foam materials: EPS, XPS, EVA, PU foam, urethane
• Wood materials: plywood, hardwood, MDF, laminated boards
• Plastic materials: acrylic, PVC, PE, PP
• Composite materials: FRP, carbon fiber (light cutting), honeycomb panels
• Soft metals: aluminum (light duty), copper (light duty)

Its powerful spindle, stable structure, and advanced control system ensure smooth cutting performance even on tall or complex materials.

Machine Highlights at a Glance

For visitors who want a quick summary, this section helps them understand the key strengths instantly:

• Recessed table for deep cutting – Extra machining height for large blocks and molds.
• ±90° swing spindle – Enables complex angle cutting and 3D carving.
• Industrial-grade linear ATC – Fast, smooth, and reliable tool changes.
• Japan Yaskawa servo motors – High precision, low noise, and long lifespan.
• Rigid 10mm welded frame – Ensures stable operation during heavy machining.
• Syntec 60WE controller – Supports advanced 3D toolpaths and multi-axis work.

This section can also be paired with icons for better visual impact.

Why Choose BCAM As Your Down-Sunk Table 4 Axis CNC Router Supplier?

Choosing the right 4 axis CNC router is not only about specifications—it’s also about long-term value. BCAM offers:

• Fast delivery: 7–14 working days for standard BCM1325C-4 axis machines.
• Professional installation support: Remote guidance, videos, and full training.
• Global service team: Local partners in multiple countries for quick help.
• High-quality components: Italy HSD spindle, Yaskawa servo, Hiwin rails, TBI ball screw.
• Strict testing before shipment: Vibration test, precision test, full-load test.

Our goal is to deliver machines that are stable, durable, and easy to use for all industries.

FAQ: Down-Sunk 4 Axis CNC Router

Q1: Why choose a down-sunk table instead of a standard 4 axis CNC router?
A down-sunk table offers extra Z space, ideal for tall molds, deep cavities, and oversized foam blocks.

Q2: Can this machine replace a 5-axis CNC router?
For many mold and foam applications, yes. It provides similar machining height at a much lower cost.
But for undercuts and highly complex angles, a full 5-axis is still necessary.

Q3:What is the main difference between a down-sunk table and a standard 4 axis CNC router?

A down-sunk table provides extra vertical machining height, allowing the spindle to move deeper without hitting the material. This makes it ideal for tall foam blocks, deep molds, and large 3D structures.

Q4:Does it support automatic tool changing?

Yes. It is equipped with an 8-position linear ATC (options available for more positions), allowing fast and precise tool changes during multi-step machining.

Q5:Can the machine be customized?

Yes. BCAM offers custom table sizes, longer Z-axis, rotary attachments, additional ATC positions, dust collection systems, and more to match your production needs.

Q6:What after-sales service does BCAM provide?

We offer global technical support, online troubleshooting, operation training, spare parts supply, and long-term maintenance guidance. Local service partners are available in many countries.

Q7:How long is the machine’s lifespan with regular use?

With proper maintenance, the core components—HSD spindle, Hiwin guides, and Yaskawa motors—can last many years, often over 8–10 years in typical factory use.
